22mm Piezo Waterproof Push Button Switch

  • Easy to clean metal surface
  • Long life (50 million cycles)

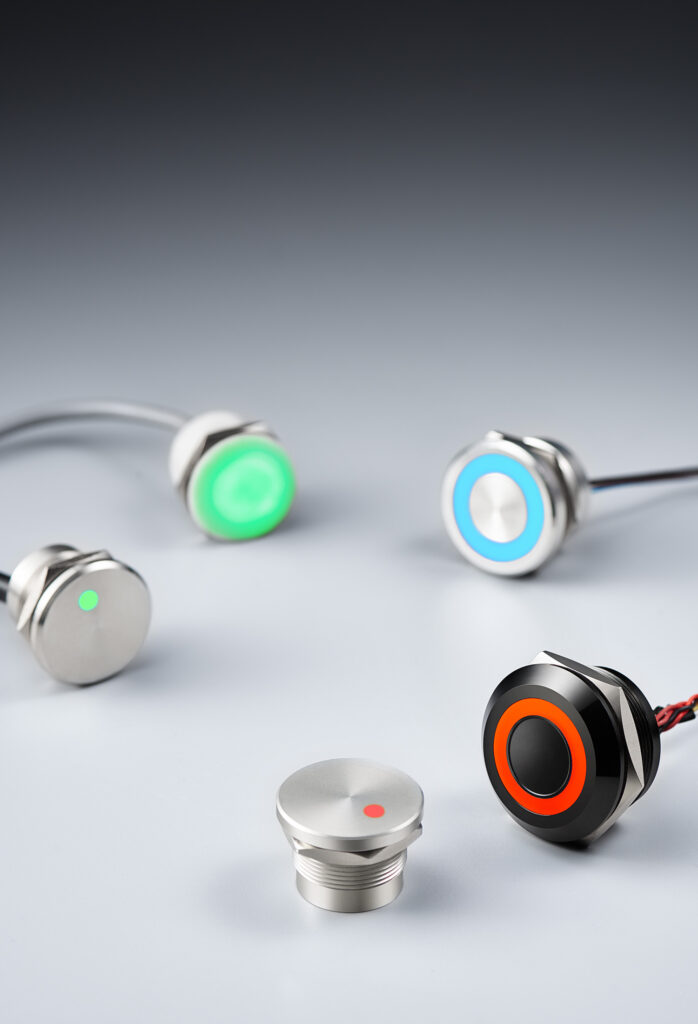

  • Ring or Dot illumination
  • Sealed to IP68 or IP69K (switch mounted on panel)

Advantages

Langir Piezo waterproof push button switch is based on a solid-state output allowing for a very long life expectancy (more than 50 million cycles), ideal for demanding applications where reliability is most important. The flat actuation surface is completely closed, preventing the intrusion of liquids or other contaminants, perfect for surface cleaning required in the medical and food-processing industries. High performance sealing (IP68 and IP69K) is achieved due to the one-piece construction of the switch. No external power supply is required. The screw-machined metal housing construction and Langir’s vertical integration allow for the manufacture of a variety of shapes.

Technical Data

Electrical Data
Functions Momentary / Latching
Contact Arrangement SPST N.O. / SPST N.C.
Pulse Duration 125 – 300mS
Voltage 1 – 24V AC/DC
Switching Current 0.2A /1A
Rated Breaking Capacity 1W
Operating Cycles >50,000,000
Switch Resistance OFF > 5 MΩ
Switch Resistance ON < 20 Ω
Capacity 30pF
Contact Configuration Free polarity
Illumination Non-illum./ Illum.
Mechanical Data
Material Aluminium 6061 T651/ Stainless Steel 316L
Actuating Force 3 – 5N
Connection Wires
Actuating Travel 0.002mm
Shock Protection IK 06
Fastening Torque 2.5Nm
Anodize Colors Gold / Red / Blue / Black / Green / Natural
Environmental Data
Operating Temperature -40°C to 75°C std.
IP Protection IP69K (front and back)

FAQs

Q1: What is a piezo waterproof push button switch?
A1: A piezo waterproof push button switch is a type of switch that uses a piezoelectric material to generate an electrical signal when pressure is applied to the button. It is designed to be waterproof, meaning it can be used in environments where moisture or liquids may be present without causing damage.

Q2: How does a piezo waterproof push button switch work?
A2: The switch contains a piezoelectric element that converts mechanical pressure into an electrical signal. When the button is pressed, it deforms the piezoelectric material, generating a voltage. This voltage can be used to trigger a circuit or control a device.

Q3: What are the advantages of a piezo waterproof push button switch?
A3: Piezo waterproof push button switches offer several advantages, including:

Waterproof and moisture-resistant, making them suitable for use in outdoor or wet environments.
Durable and long-lasting, with no mechanical parts that can wear out.
Vandal-resistant, as they are difficult to damage or tamper with.
Can be used in a wide range of temperatures.
No audible click or noise when pressed, making them suitable for quiet environments.

Q4: Where can piezo waterproof push button switches be used?
A4: These switches are commonly used in various applications, such as industrial control panels, medical equipment, marine electronics, automotive dashboards, outdoor equipment, and more. Their waterproof and durable nature makes them ideal for environments where moisture, dust, or vandalism may be a concern.

Q5: Are piezo waterproof push button switches customizable?
A5: Yes, many manufacturers offer customization options for these switches, such as different colors, shapes, sizes, and even custom markings or labels. It’s best to check with the specific manufacturer or supplier for available customization options.

Q6: Can Piezo Waterproof Push Button Switches be integrated into existing systems?
A6: Yes, these switches are designed to be compatible with standard electrical systems and can be easily integrated into existing circuits or devices. They typically have standard electrical terminals or connectors for easy installation.

Q7: Are piezo waterproof push button switches safe to use?
A7: Yes, they are safe to use when installed and used according to the manufacturer’s instructions. However, it is always important to follow proper safety practices and consult with a professional if you have specific safety concerns or requirements.
