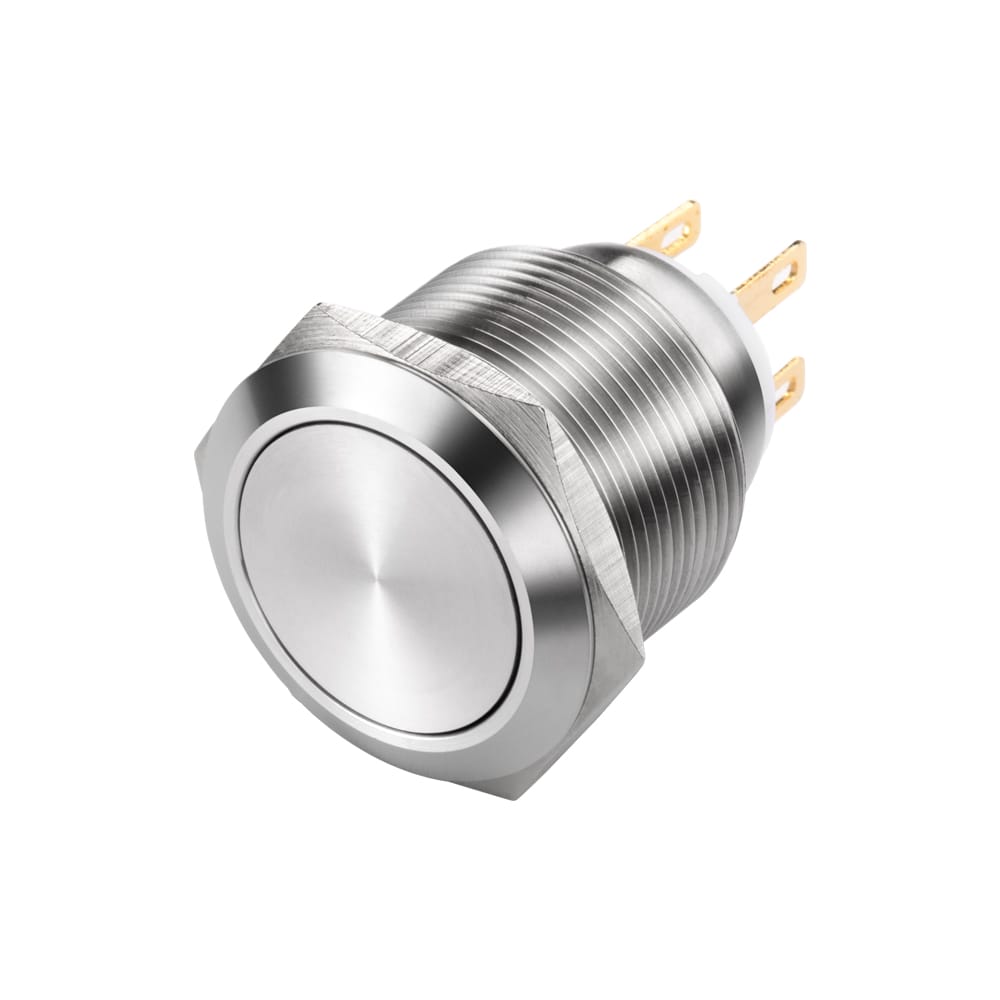

The L22A anti-vandal illuminated push button switch is dust and water resistant to an IP65 rating. Featuring multiple actuator options, the switch have a long life expectancy of a million mechanical cycles.
İki renkli LED ve RGB LED seçenekleri dahil olmak üzere çoklu aydınlatma renkleri sunarlar. Hem nokta hem de halka aydınlatması mevcuttur, ayrıca güç sembolü aşındırma veya aydınlatmalı (halka aydınlatmalı) grafik seçeneği de vardır.
The L22A illuminated push button switch is meant for a panel cutout sized of 19mm in diameter.
The L22A anti-vandal illuminated push button switch is available with multiple finishes, including a black anodized finish. Single pole or double pole circuits are also available for performing maintained and momentary functions and double break functions.
Standart kablo uçları da mevcuttur.
Bu anti-vandal anahtarlar için uygulamalar şunları içerir:
| Tip | L22A-F | L22A-F-R | L22A-F-D | ||||
| Aydınlatmalı Seçenekler | Aydınlatmasız | Halka Aydınlatmalı | Nokta Aydınlatmalı | ||||
| Maks. Panel Kalınlığı: | 0,394″ (10,0 mm) | ||||||
| Terminal | Screw / Solder lug(2.8 x 0.5) | ||||||
| Maks. Anahtar Değeri | 5A/ 250VAC | ||||||
| Temas Direnci | ≤50mΩ | ||||||
| İzolasyon Direnci | ≥1000mΩ | ||||||
| Dielektrik Dayanımı | 2000VAC | ||||||
| Çalışma Sıcaklığı. | -20°C ~ +55°C | ||||||
| Mekanik Ömür | 1.000.000 döngü | ||||||
| Elektriksel Yaşam | >50.000'den fazla döngü | ||||||
| İletişim Malzemesi | Gümüş Alaşım | ||||||
| Tork | 5 ~ 14Nm | ||||||
| Çalışma Basıncı | yaklaşık 3 ~ 8N | ||||||
| Koruma | IP65 | ||||||
| Malzeme | Aktüatör | Paslanmaz Çelik / Eloksallı Alüminyum | |||||
| Vücut | Paslanmaz Çelik / Eloksallı Alüminyum | ||||||
| Üs | PA | ||||||
| Renk | Tip | LED (20mA değerinde) | |||||
| Renk |  |
 |
 |
 |
 |
 |
|
| Işık Yoğunluğu (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 | |
| İleri Volatge | 1.8~2.6 | 2.8~3.6 | |||||
| Aydınlatma Gerilimi | sonek yok Direnç takılı değil. Uygun bir direnç kullanıcı tarafından seri bağlanmalıdır. Gerilimler yukarıdaki gibidir. | ||||||
| 6V/ 12V/ 24V/ 36V/ 110V/ 230V | |||||||
| Yaşam | Yaklaşık 40.000 saat | ||||||
Anlık
Dönüşümlü
A single pole switch is a basic switch that controls the flow of electrical current in a circuit. Its advantages include simplicity, cost-effectiveness, and ease of installation.
A momentary switch is designed to be pressed and held momentarily to activate a function, and it returns to its original state when released. It is commonly used in applications such as doorbells, keyboards, or push-to-talk systems.
The L22A Anti-Vandal Single Pole Switch features a robust anti-vandal design, stainless steel construction, high-quality materials, and a reliable electrical connection.
The anti-vandal design of the L22A switch includes rugged materials, tamper-resistant construction, and a sturdy button mechanism, providing durability and protection against intentional abuse or tampering.
The L22A switch is designed for long-lasting performance, with an expected mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles.
Yes, the L22A switch can be customized to meet specific requirements, including options for button colors, LED illumination, engraving, and different sizes.
Yes, the L22A switch complies with relevant industry standards and certifications, ensuring quality, safety, and reliability.
The L22A switch is IP65 rated, providing protection against dust ingress and water splashes, making it suitable for both indoor and outdoor applications.
The L22A switch has a maximum voltage rating of 250V and a maximum current rating of 5A, ensuring compatibility with a wide range of electrical systems.
Yes, the L22A switch is designed to fit standard panel cutout sizes, allowing for easy installation and replacement in various applications.
