Touch Metal Piezo Keypad

  • With maximum reliability and durability, the piezo keypads are Ideal for use in rough environments.
  • IP68 Dust and water resistant, Sea-water and detergent resistant.
  • No moving part, maintenance free.
  • Made of one piece of solid metal, totally rugged.
  • Potted switching unit at rear seals against all contamination and prevents freezing
  • Flexible anodize print or laser engrave layout

Technical Data

Electrical Data
Standard Output Matrix / Common Bus
Contact Arrangement SPST N.O.
Switch Voltage 1 – 24V AC/DC
Switching Current 0.2A / 1A
Force required for switch operation 3 – 5N
Mechanical Data
Material Aluminium / Stainless Steel
Graphics Anodized Printing / Laser Engraving
Electrical Connection Flat Cable / Pins
Available Interfaces RS232 / RS485 / USB/ I2C / ASCII / UART
Environmental Data
Operating Temperature -20°C to 85°C
Exceeds Class 1 Div 1 hazardous location requirements
Impact proof to lK10
IP68-IP69K wash-down proof up to 100 Bar (manysubmerged installations)
Compliant with IEC/EN 60529,CE, ROHS,REACH
Neither creates nor is affected by ESD, RFI or EM.

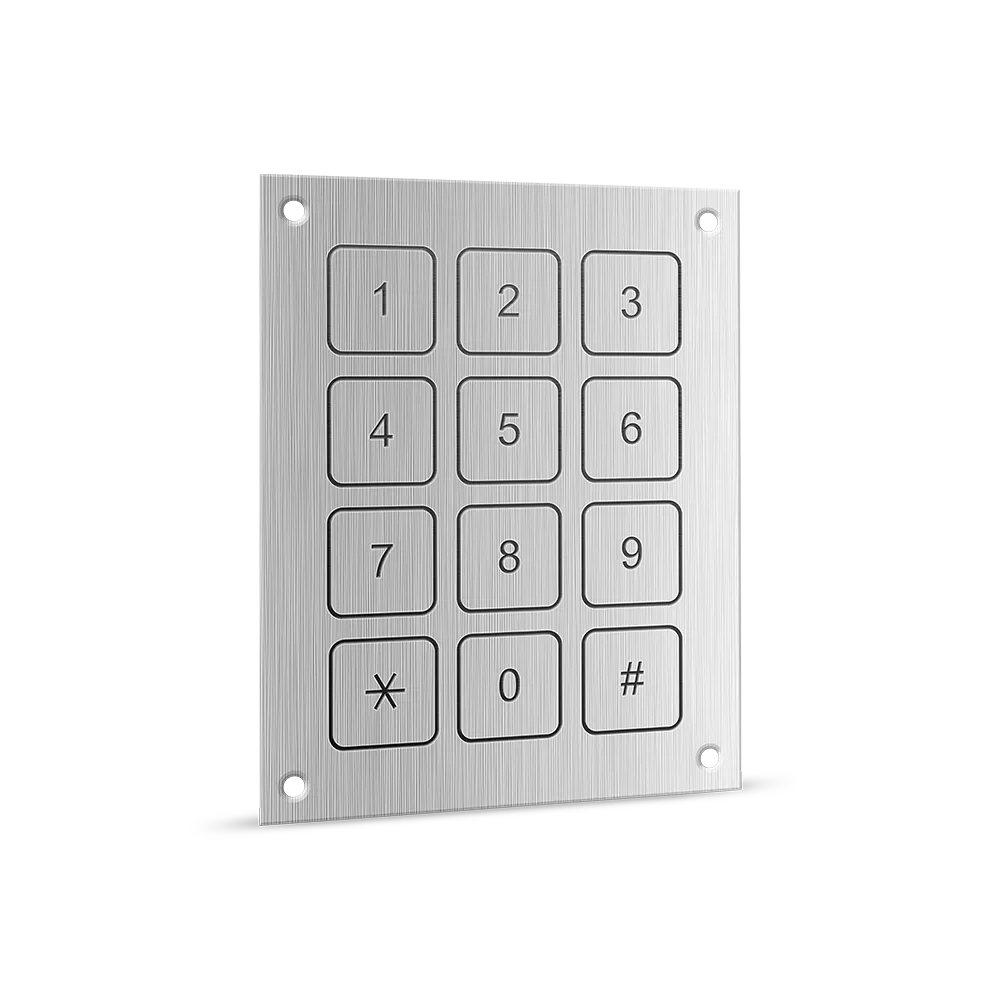

3X4/ 4X3 Description Options
KP34 Piezo Keypads 3X4 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB
KP43 Piezo Keypads 4X3 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB
4X4 Description Options
KP44 Piezo Keypads 4X4 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB

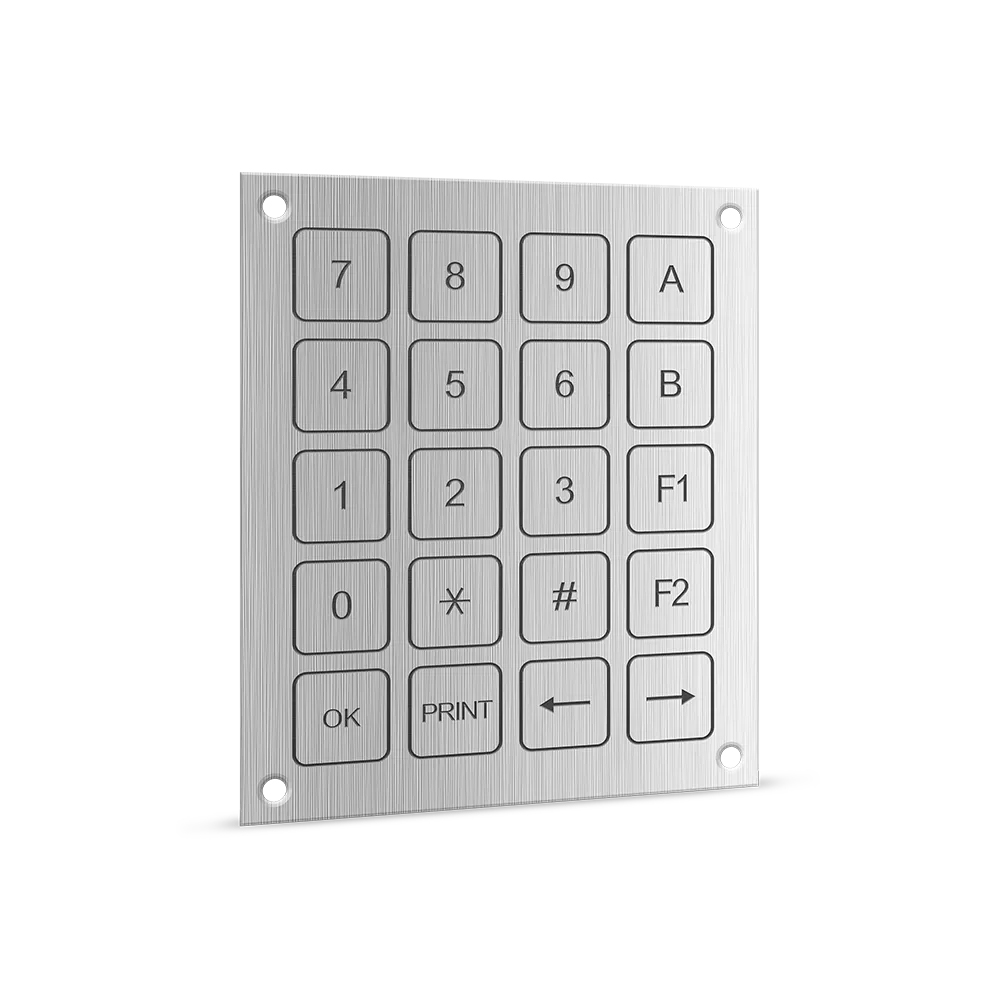

4X5 / 5X4 Description Options
KP45 Piezo Keypads 4X5 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB
KP54 Piezo Keypads 5X4 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB

Order Code

Touch Metal Piezo Keypads

FAQs

What is a piezo keypad and how does it work?

A piezo keypad is a type of keypad that utilizes piezoelectric technology to detect user input. Piezoelectric materials generate electrical charges in response to mechanical pressure. When a user applies pressure to a piezo keypad, it generates an electrical signal that is detected and interpreted as a key press.

What are the benefits of using piezoelectric technology in keypads?

  • High reliability and durability
  • Fast response time
  • Resistance to environmental factors such as moisture, temperature, and chemicals
  • Long lifespan with millions of actuations
  • Low power consumption

What are the advantages of using piezo keypads?

  • Durability and resistance to wear and tear
  • Waterproof and resistant to harsh environments
  • Long lifespan
  • No moving parts, reducing the risk of mechanical failure
  • High sensitivity and responsiveness
  • Can be operated with gloves or in wet conditions

How are piezo keypads different from traditional mechanical keypads?

Unlike traditional mechanical keypads that use physical switches, piezo keypads rely on the piezoelectric effect to detect input. This eliminates the need for moving parts, making them more durable and less prone to mechanical failure. Additionally, they are often more resistant to water and environmental factors.

What industries commonly use piezo keypads and keypad switches?

  • Industrial automation and control
  • Medical and healthcare
  • Transportation and automotive
  • Aerospace and aviation
  • Security and access control
  • Public kiosks and self-service terminals

Are switchplates available for piezo keypads?

Yes, switchplates or protective overlays are commonly available for piezo keypads. These switchplates provide an additional layer of protection, preventing accidental key presses and enhancing the overall durability of the keypad.

How do piezo keypads enhance security in access control applications?

  • Anti-tampering features: Piezo keypads are resistant to physical tampering, making it difficult for unauthorized individuals to manipulate the keypad.
  • Covert operation: The lack of tactile feedback in piezo keypads makes it difficult for potential intruders to detect the pressed keys, enhancing security.
  • PIN code protection: Piezo keypads can be used to enter PIN codes or passwords, adding an additional layer of security to access control systems.

What customization options and requirements are available for a custom piezo keypad?

When customizing a piezo keypad, you have various options such as choosing the size, shape, layout, materials, graphics, backlighting, and additional functionalities. Common customization requirements include meeting industry standards, IP-rated sealing for water and dust resistance, compliance with specific specifications, resistance to harsh conditions, and integration into larger systems.

Why should I choose Langir as my trusted piezo keypad manufacturer for customizing my keypad?

Langir is a leading and reputable piezo keypad manufacturer known for its expertise in producing high-quality and customized keypads. With years of experience in the industry, Langir has a proven track record of delivering reliable and durable solutions for various applications. By choosing Langir, you can benefit from their in-house design and engineering capabilities, ensuring that your custom piezo keypad meets your exact requirements. Langir utilizes top-grade materials, rigorous quality control processes, and comprehensive testing to ensure the performance and longevity of their keypads. Their commitment to customer satisfaction and their excellent reputation in the industry make Langir the ideal choice for your piezo keypad customization needs.
