What is a Boat Switch?

Boat switches are electrical components that allow you to control various functions on a boat. Usually, boat operators use these switches to turn the power on and off to your battery and select between different batteries in a multi-bank system.

Other than this, these marine switches are useful in managing a boat’s lighting, navigation systems, battery power distribution, and keeping safety equipment functional. Boat switches come in plenty of different types and sizes, ensuring you find the one that can handle the electrical demands of your boat.

How Do Boat Switches Work?

Generally, boat switches have a knob or lever and work by connecting or disconnecting electrical connections between the batteries and the boat’s electrical systems. However, to help you understand this better, here’s an overview of the working of boat switches:

  • Off Position: In the “off” position, the contact plates inside the switch are separated, and there’s an air gap preventing electric current’s flow from batteries to the boat’s electrical systems.
  • On Position: As soon as you move the switch to the “on” position, the internal contact plates connect or press together. This results in a closed circuit allowing electricity to flow from batteries to power the boat’s electrical systems.

Types of Boat Switches

There are various types of boat switches available in the market; some of these include:

Langir Anti vandal toggle switch anodized

Toggle Switch

Toggle switches, as the name suggests, have a toggle on the outside that’s moved up and down to control electrical power on the boat. These switches are available in various configurations like SPST, SPDT, and DPDT.

You can use them on your boat for demanding and high-power applications such as running the boat’s engine. The simplicity and reliability of boat toggle switches make them an excellent choice for boat operators.

Rocker Switch

Next, the rocker boat switches work pretty much like toggle switches but have a different structure. Instead of a toggle, they have a rocker mechanism that moves back and forth to control various boat operations.

Rocker boat switches have only one pole and consume less power than other types of boat switches. They are affordable and available in various styles, complementing the overall outlook of your boat.

1-2 Combine Switch

1-2 combined boat switches are suitable in a multi-battery system where you’ve to choose between one of the two batteries to power your boat’s electrical systems. It also enables you to opt for both batteries combined to power the engine or other power-intensive applications.

Here are the 4 different positions the 1-2 combined boat switch has:

In this, the switch isn’t connected to either of the two batteries, which means there’s no current flow.

1-position is when the switch is connected to the first battery.

2-position is when the switch is connected to the second battery and used for powering your boat’s systems.

At the 1-2 combine positions, the switch is connected to both batteries, generating maximum power.

With 1-2 combined boat switches, you’ve greater flexibility than a simple on-off switch, as you can connect to any battery of your choice or run both at the same time. Not only this, but this power distribution between two batteries allows you to optimize their usage, extending their lifespan.

How to Wire Boat Switch Panels?

Wondering how to wire your boat switch panel without any professional help? Here’s the step-by-step guide:

Things You Need

  • Battery to power the panel
  • Marine wire to connect the panel and circuits
  • Switch panel (illuminated or non-illuminated)
  • Adjustable wire stripper to get different sizes of wires
  • Battery isolator for dividing current flow from the battery

Step-by-Step Guide

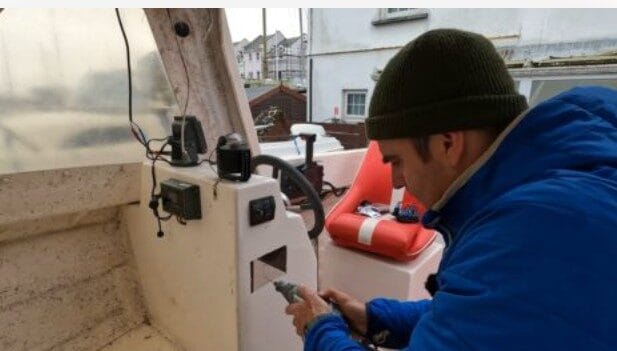

Cut Space for the New Switch Panel

Prepare the boat for the new switch panel by cutting a space in the helm or desh exactly the size of the panel. Make sure all wires are accessible at the installation area.

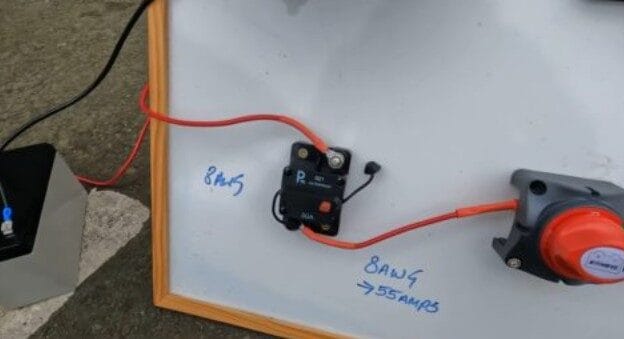

Connect Circuit Breaker With Battery

Next, connect the circuit breaker to the battery. A circuit breaker is essential to ensure your battery doesn’t get exhausted too quickly and guarantees the safety of connected wires. Simply take the wire and connect one end to the positive terminal of the battery and the other end to the circuit breaker.

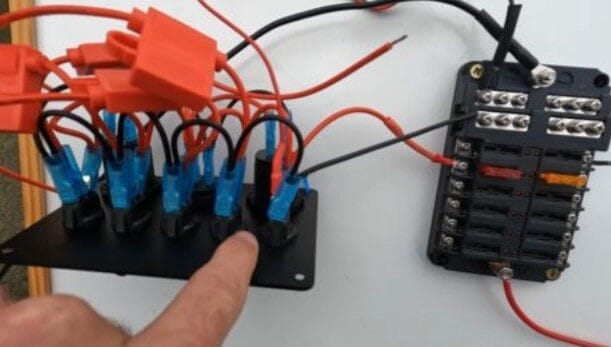

Connect the Switch Panel and Fuse Panel to the Battery

To connect the wire to the fuse panel, start by taking a marine-grade wire. Connect one end of the wire to the other negative terminal of the battery and the second end to the opposite side of the fuse panel.

Now, it’s time to join the fuse panel and switch panel. You can do this by connecting the red wire of the switch panel to a positive terminal of the fuse panel. In the same way, you can take the black wire from the switch panel and attach it to one of the negative terminals of the fuse panel using a wire nut.

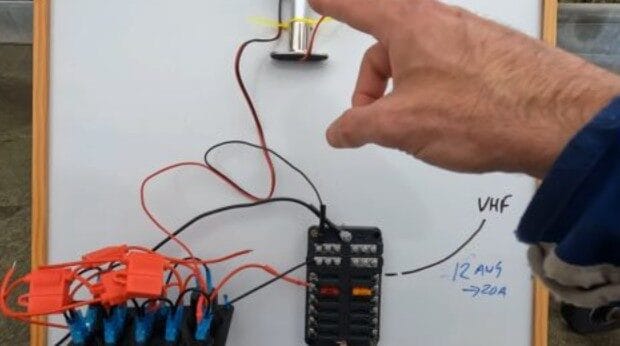

Connect Accessories to the Switch Panel

Your switch panel is now ready to be connected to different boat accessories or components. For this, take the negative wire of the accessories and connect it to the negative terminal on the fuse panel. Simultaneously, connect the positive wire of the accessories with the positive switch panel terminal. Put the switch panel in place and you are all done!

Best Boat Switches Options to Choose From

The following are some of the best boat switches you can invest in to operate your boat safely and efficiently:

Langir Anti vandal toggle switch

Anti Vandal Toggle Switch

First, we have the Anti-Vandal Toggle Switch, which offers simple and reliable operation with various LED options for customization and enhanced visibility. It’s rated IP67 and provides excellent protection against moisture and dust.

 It’s rated IP67 and provides excellent protection against moisture and dust.

Featuring an electrical rating of 10A 250VAC and a mechanical life of 200,000 cycles, this switch promises durability and efficient performance in the long run. It boasts a contact resistance of ≤50mΩ and insulation resistance of ≥100MΩ. The cherry on the cake? It has a dielectric strength of 2,000 and an operating/storage temperature range of -20°C to 55°C, which makes it suitable for various environments.

Plastic piezo push button electrical switch

Plastic Piezo Switch

The Plastic Piezo Switch is another excellent option in the list of boat switches. It comes with a 25 mm diameter actuator and a 22.2mm diameter mounting hole, enabling convenient installation. Operating as a normally open or momentary action, this switch has an impulse time of 125 to 300 seconds.

Rated IP68, slightly higher than the Anti Vandal Toggle Switch, this switch offers enhanced protection against water and dust damage. The operating voltage is 1-24V AC/DC, with a switching current of 0.2A, which means you can easily use this switch for any high-power demanding boat applications. Last but not least, this switch comes with an illumination feature that provides more visibility, especially at night.

25mm capacitive touch switch

25 mm Capacitive Switch

The final option on our list of the best boat switches is the 25 mm Capacitive Switch. This sensory switch is very easy to use compared to the other two options on the list. With a mere finger touch, you can use this switch to manage various boat operations.

The life expectancy of the 25 mm Capacitive Switch is around 50,000 cycles, which indicates that it will serve you in the long run. Its operating temperature is -20°C to +65°C, while the voltage rating is 200mA 24VDC. The best part about this switch is the IP68 and IP69K ratings that make it a must-have in challenging marine environments.

Tips to Choose the Best Boat Switches

There are a myriad of boat switches available on the market, which makes it difficult for you to choose the right one. But worry no more! Here are some factors that you should consider when choosing boat switches to make your investment worthy:

First and foremost, you should pay attention to the type of switch you need. Some boat switch types you may come across are 1-2 combine switches, toggle switches, and rocker switches. Each type has advantages and working mechanics, so pick the one that best suits your boat’s electrical needs.

Boats are constantly exposed to water, necessitating you to pick boat switches that are waterproof and corrosion-resistant. For this, pay attention to the IP ratings because the higher the IP rating, the more the switch is protected against water and dust damage.

In addition, consider switches that come in corrosion-proof casing, such as marine-grade stainless steel, to ensure they work efficiently in harsh weather conditions. Remember, investing in boat switches with these qualities minimizes the risk of electrical failures.

Another thing you must do is make sure the electrical specifications of the switch match the requirements of your boat’s electrical systems. Check the voltage and current rating and compatibility with the type of circuits you have onboard. This ensures a safe and reliable boat operation, preventing damage to the boat’s electrical components.

Pick a boat switch that easily blends with your boat’s aesthetics. Toggle switches offer great functionality, but they lack visual appeal and are not available in many designs. On the other hand, rocker switches come in various styles, and you can easily find the one that complements the look of your marine equipment.

While functionality is paramount, you shouldn’t overlook your budget. Set a budget and compare product prices from different manufacturers before purchasing a switch. Remember, expensive switches may come with additional features, but they may not always be necessary for your specific needs.

FAQs

What are Boat Circuit Breakers?

Boat circuit breakers are essential electrical safety devices that shield your boat’s electrical system from damage caused by current overflow. Similar to the circuit breakers at home, boat circuit breakers interrupt the current’s flow when a fault occurs. This prevents overheating, fires, and damage to the electrical control systems of the boat.

What is a Boat Wire?

Boat wire or boat cable is made up of different conductors instead of one. It’s more durable and flexible and can easily withstand the harsh conditions encountered on the water, including exposure to moisture, saltwater, and UV radiation. Generally, boat cables feature a tinned copper conductor and are covered with materials such as polyvinyl chloride (PVC).

Can Boat Switches Be Damaged?

Yes, if you opt for low-quality boat switches, they can be damaged. Common reasons for damage include exposure to moisture, saltwater, and corrosive environments. This leads to corrosion in electrical switch contacts and deterioration of internal components. Therefore, it’s suggested that switches with high IP ratings be opted for.

What is the Purpose of a Marine Battery Switch?

The purpose of a marine battery switch is to provide you with complete control over the electrical power distribution of the boat. It allows you to choose which battery to use for things like lights, pumps, electronics, and engines and which should be given rest for a recharge. This switch is especially helpful in a multi-bank or multi-battery setup.

Conclusion

Boat switches are of great help as they allow you to switch to different batteries or use multiple at once as per your power needs. Some common boat switch types include toggle switches, rocker switches, and 1-2 combine switches. You should pick the one that best suits your electrical requirements and budget.

But if you are unable to find a reliable boat switch provider, Langir has your back! We have a wide variety of high-quality boat switches that feature IP67 and IP68 ratings, ensuring efficient functioning in challenging conditions.

Get in touch with us today and purchase affordable yet top-notch marine switches for the boat!
