Anti-Vandal Pilot Indicator

The pilot indicator offers tamper resistant properties without the actuation function. This anti-vandal LED indicator light provides multiple panel cutout sizes ranging from 6mm to 19mm in diameter. Body finish options include stainless steel or black.

The PI Series pilot lamp indicator offers two termination options: solder lugs or attached wire leads that are 150mm long. Custom wire length is available upon request.

The lens colors include red, green, or blue.

There are multiple illumination voltage options to choose from as well.

  • Pilot lamp indicator
  • IP67 rated for dust and moisture protection
  • Multiple panel cutout sizes ranging from 6mm to 19mm
  • Multiple illumination volt options
  • Multiple LED color options
  • 40,000 hours nominal lamp life
  • 150mm long wire lead option

Applications

  • Kiosks and ticket dispensers
  • Industrial applications
  • Agriculture

Order Code

Anti vandal pilot indicator

NOTES:
* PV: only 8mm and 12mm
** Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors

Dimension

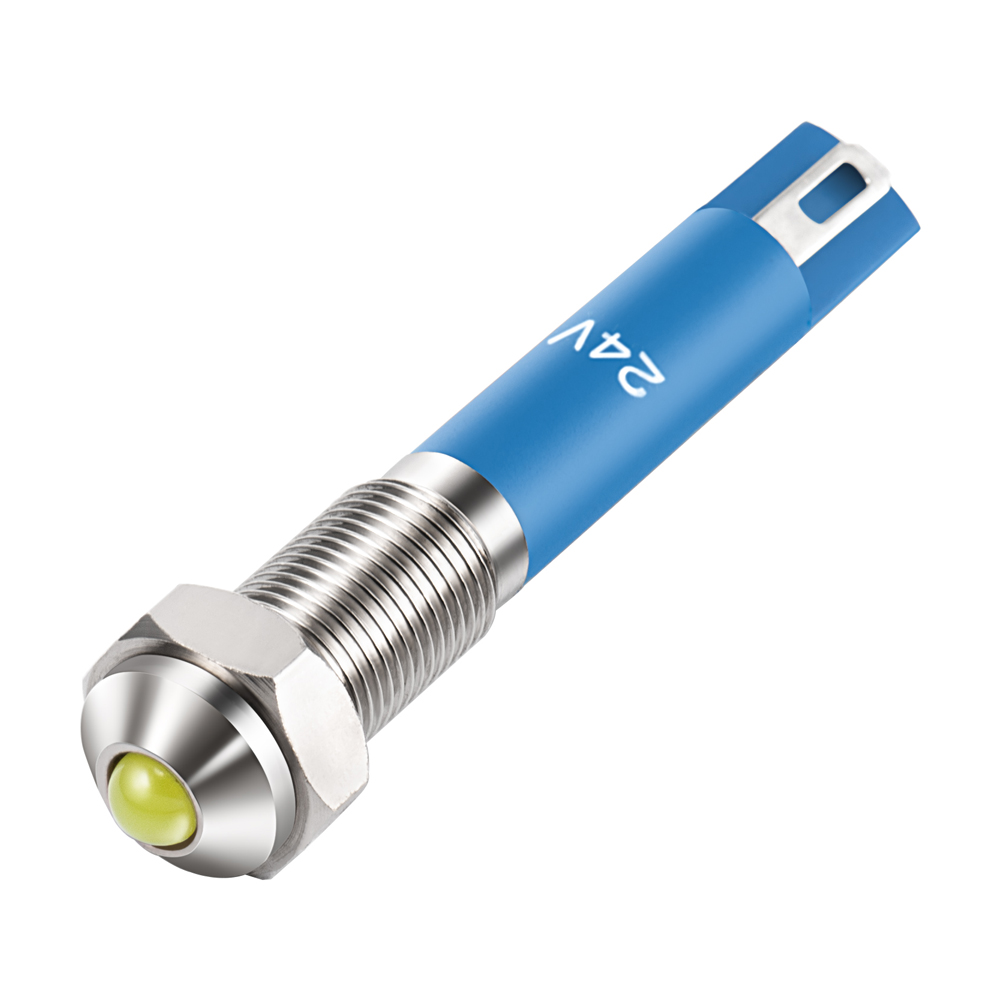

6mm Anti vandal pilot indicator

PI6 Anti vandal pilot indicator

PI6

8mm Anti vandal pilot indicator

PI8 Anti vandal pilot indicator

PI8

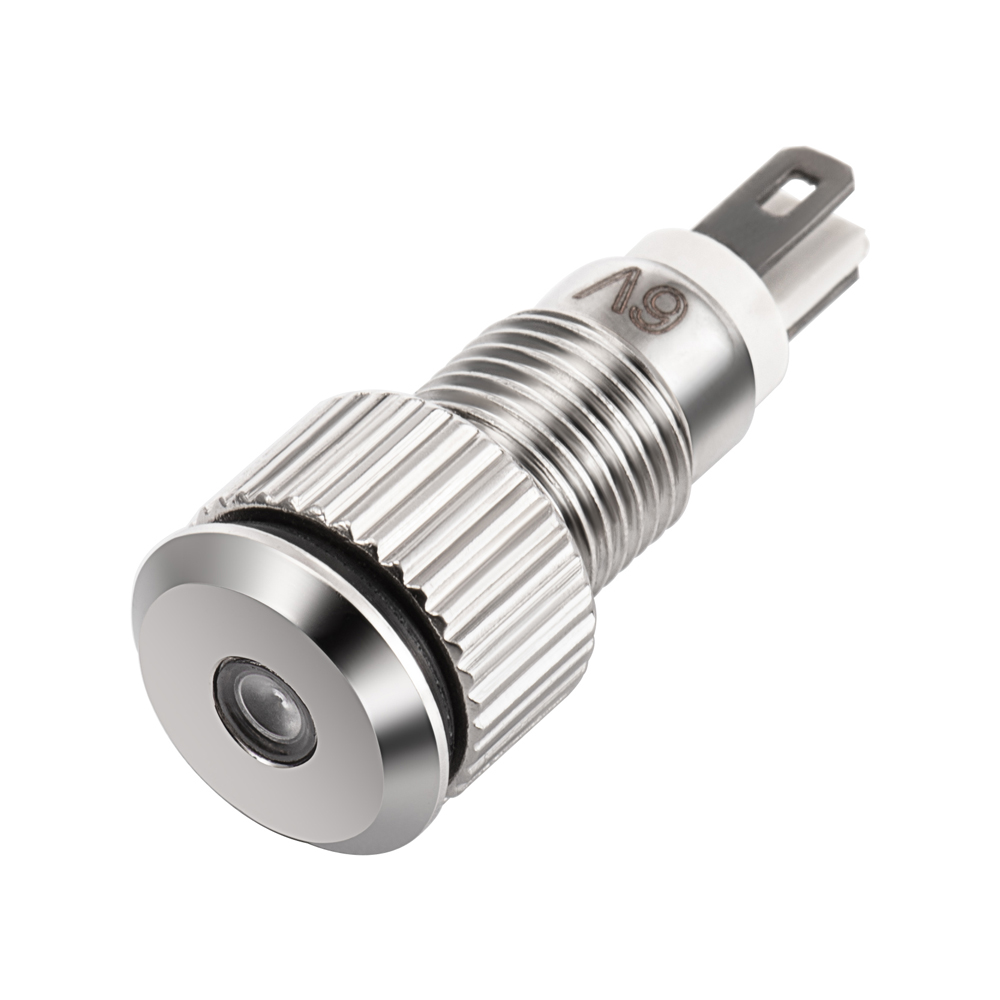

8mm Anti vandal pilot indicator

PV8 Anti vandal pilot indicator

PV8

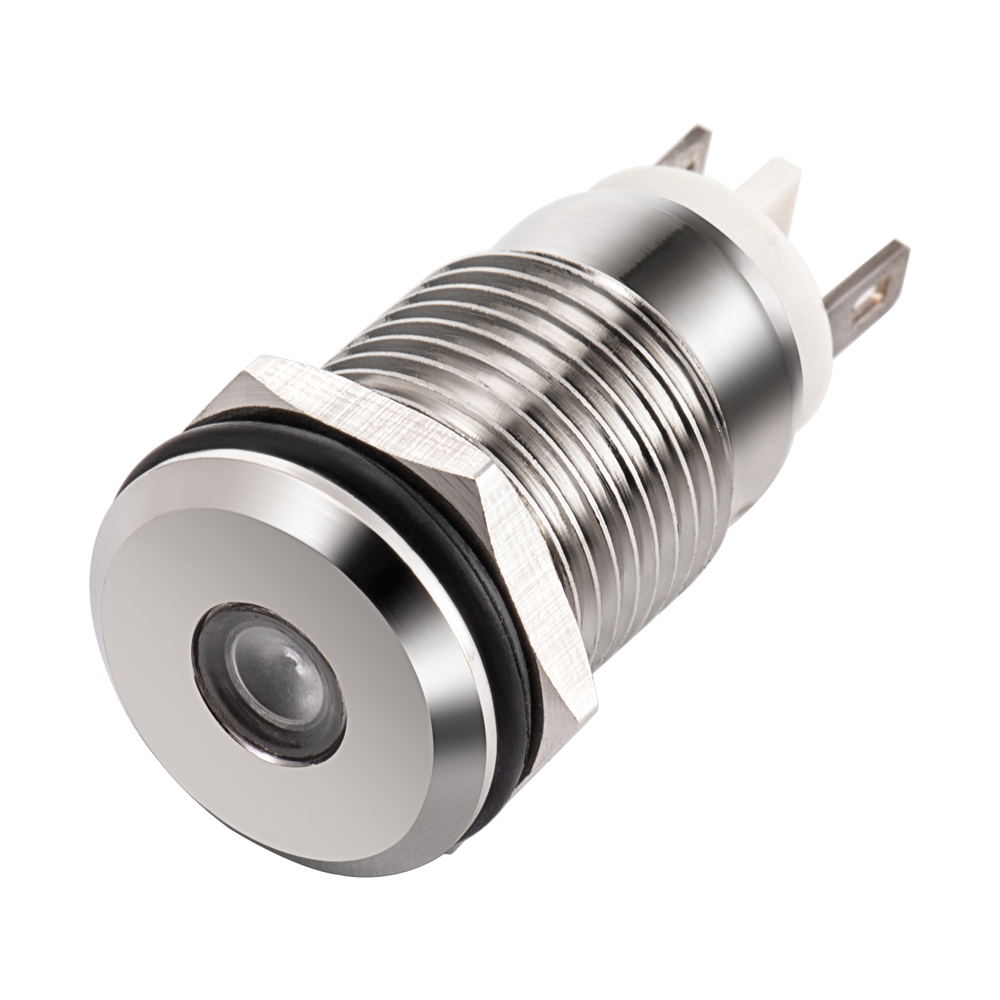

12mm Anti vandal pilot indicator

PV12

PV12 Anti vandal pilot indicator

10mm Anti vandal pilot indicator

PI10 Anti vandal pilot indicator

PI10

12mm Anti vandal pilot indicator

PI12 Anti vandal pilot indicator

PI12

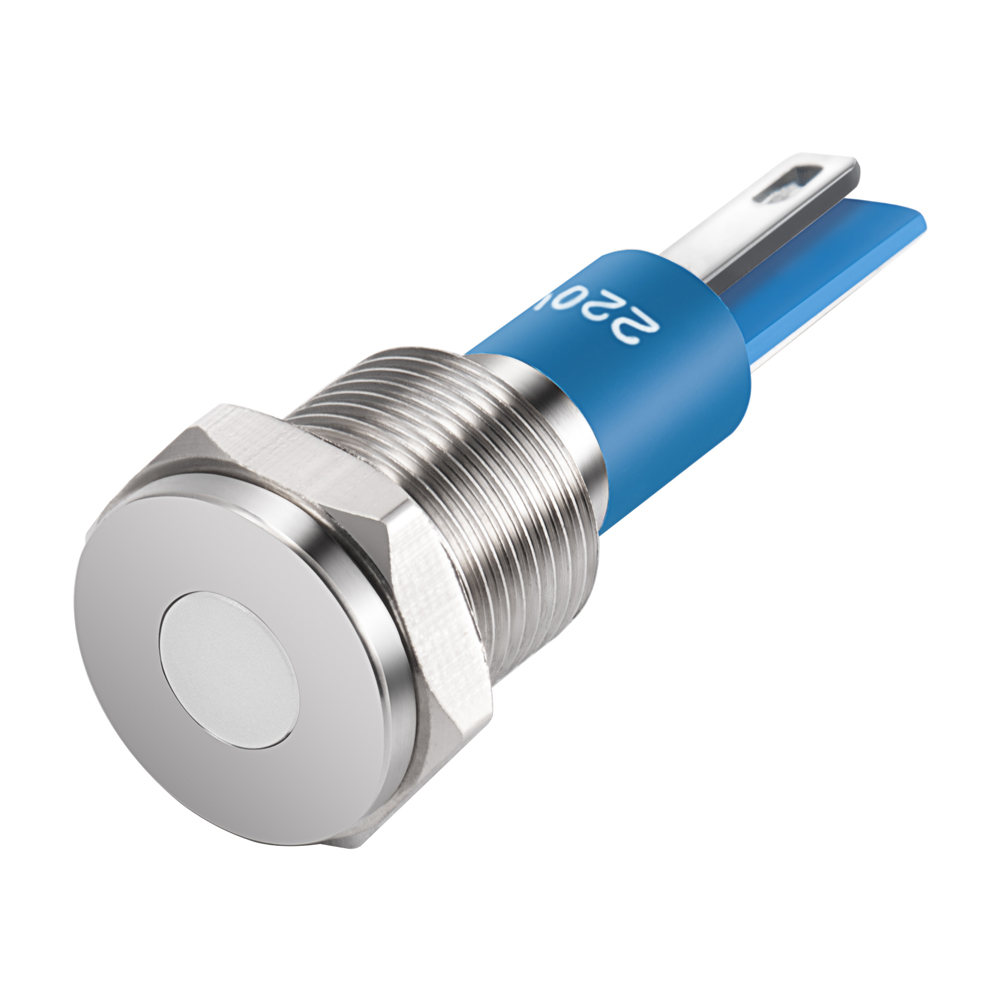

14mm Anti vandal pilot indicator

PI14 Anti vandal pilot indicator

PI14

16mm Anti vandal pilot indicator

PI16 Anti vandal pilot indicator

PI16

19mm Anti vandal pilot indicator

PI9 Anti vandal pilot indicator

PI19

FAQs

What is a pilot indicator?

A pilot indicator, also known as a pilot light, is an electrical device used to visually indicate the status, operation, or condition of a circuit, equipment, or system.

What are the benefits of using LED indicator lights?

LED indicator lights offer several advantages, including high energy efficiency, long lifespan, instant illumination, compact size, and the ability to produce a wide range of colors for different signaling purposes.

How does a pilot lamp indicator work?

A pilot lamp indicator utilizes a small incandescent bulb or an LED to emit light when an electrical current passes through it. The light serves as a visual indication of the circuit’s status or operation.

What is an anti-vandal pilot indicator?

An anti-vandal pilot indicator is a specialized type of indicator light designed to resist damage, tampering, or vandalism. It is constructed with durable materials and features a robust design to ensure its longevity and reliability in challenging environments.

Where are anti-vandal LED indicators commonly used?

Anti-vandal LED indicators are commonly used in public areas, outdoor installations, industrial equipment, control panels, machinery, and any application that requires a durable and tamper-resistant indicator light.

What are the key features to consider when selecting an anti-vandal pilot indicator?

When selecting an anti-vandal pilot indicator, important features to consider include rugged construction, resistance to impact and vandalism, waterproof or dustproof ratings, brightness levels, and compatibility with the electrical system.

Can anti-vandal pilot indicators withstand harsh environmental conditions?

Yes, anti-vandal pilot indicators are designed to withstand harsh environmental conditions. They are often built to be weatherproof, resistant to dust, water, and temperature variations, making them suitable for use in demanding environments.

Are anti-vandal pilot indicators available in different colors?

Yes, anti-vandal pilot indicators are available in various colors, including red, green, yellow, blue, and white. Different colors can be used to convey different meanings or indicate specific states or conditions.

Can anti-vandal pilot indicators be customized with specific symbols or labels?

Yes, many anti-vandal pilot indicators can be customized with specific symbols, labels, or legends to provide clear visual identification or communicate specific messages related to the application or equipment.

How do I install an anti-vandal pilot indicator?

Installation methods may vary depending on the specific anti-vandal pilot indicator model. Generally, they can be mounted using screws or nuts, and electrical connections are made using appropriately sized wires or connectors. It is recommended to consult with Langir for proper installation instructions.
