DC circuit breakers protect electrical systems from overloads and short circuits by detecting faults and safely interrupting current. Knowing how these devices work helps you choose the right protection and keep systems reliable. Below we explain the operating principles of DC circuit breakers, compare common types, and highlight where they’re used—especially in solar installations and electric vehicles, where DC’s constant flow creates specific challenges compared with AC.
What Is a DC Circuit Breaker and Why Is It Essential?

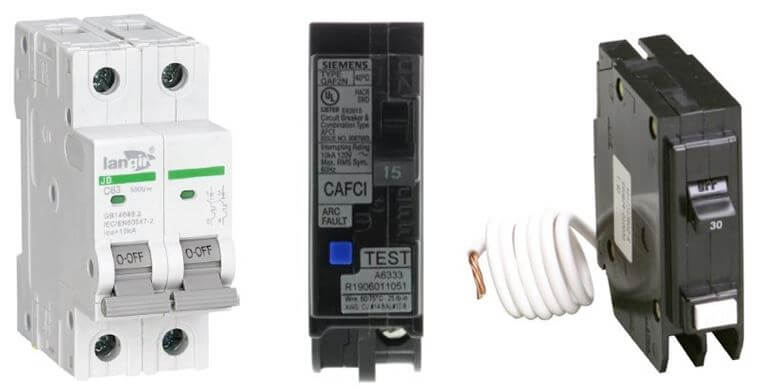

A DC circuit breaker is a protective switch that opens a direct-current circuit when it detects dangerous operating conditions. Its job is straightforward: stop excessive current before it damages components or causes a fire. Because DC doesn’t cross zero like AC, interrupting it safely requires purpose-built designs and components.
Get a quote for custom DC circuit breakers from Langir
Defining DC Circuit Breakers and Their Role in Electrical Safety
These breakers monitor current and disconnect power when a fault is detected, protecting wiring, inverters, batteries, and other equipment. In a photovoltaic array, for example, a correctly specified DC breaker can isolate a fault quickly, preventing damage to panels and downstream electronics while improving overall system safety.
Challenges of Interrupting Direct Current Compared to AC
Unlike AC, DC has no natural zero point where the arc extinguishes, so breakers must rely on arc-control strategies and larger contact separations. Effective DC interruption depends on arc suppression, contact design, and often longer travel distances—factors that influence a breaker’s construction and application.
That absence of a natural zero crossing is a core technical challenge called out in the literature.
DC Circuit Breaker Challenges: No Natural Zero Crossing
In DC systems there is no alternating zero crossing to help extinguish an arc, so robust DC breakers require dedicated interruption techniques and mechanical or electronic measures to safely stop the current.
DC power distribution: New opportunities and challenges, L Qi, 2017
How Does a DC Circuit Breaker Work: Key Principles and Mechanisms
DC breakers rely on several methods to interrupt current safely: thermal and magnetic trip mechanisms, plus arc suppression and extinction systems. These elements work together to detect faults, separate contacts, and extinguish arcs so circuits can be isolated without damage.
What Are Thermal and Magnetic Protection Methods in DC Breakers?
Thermal protection typically uses a bimetal element that bends with heat from sustained overcurrent, opening the circuit for slow, overload conditions. Magnetic protection uses a coil that produces a strong force under short-circuit currents, triggering a fast trip. Many breakers combine both methods to cover different fault profiles.
How Do Arc Suppression Techniques Ensure Safe DC Interruption?
Because DC sustains arcs, breakers use arc chutes, magnetic blowouts, specialized insulating materials, and longer contact travel to lengthen and cool arcs until they extinguish. These design choices reduce arc energy and prevent damage to contacts and surrounding equipment—especially important in high-power systems.
What Are the Main Internal Components of a DC Circuit Breaker?
Key parts include the operating mechanism (the trip and reset hardware), the current-carrying contacts, and arc-extinguishing elements. Protection electronics or coils detect fault conditions; contacts separate to interrupt current; and arc-control structures safely manage the energy released during interruption.

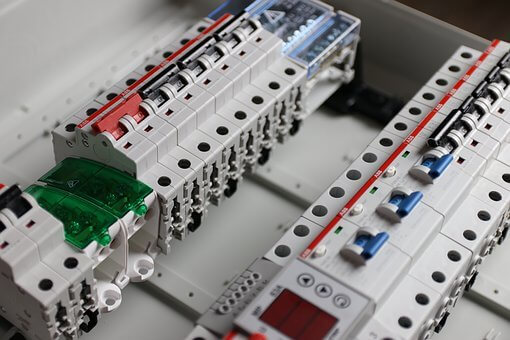

What Are the Different Types of DC Circuit Breakers and Their Features?
DC breakers are available in multiple formats to suit voltage, current, and application needs. Choosing between mechanical, solid-state, and hybrid options comes down to response speed, durability, cost, and the electrical environment.
Get a quote for custom DC circuit breakers from Langir
How Do DC Miniature Circuit Breakers Differ from Molded Case Circuit Breakers?
Miniature circuit breakers (MCBs) are compact and suited to low-current, light-commercial, and residential DC circuits. Molded case circuit breakers (MCCBs) are larger and rated for higher currents and tougher industrial conditions. Pick the family that matches your current and fault-level requirements.
What Are Solid-State and Hybrid DC Circuit Breakers?
Solid-state breakers use power semiconductors and electronics to sense faults and interrupt current, offering very fast response and frequent switching without contact wear. Hybrid breakers combine solid-state elements for fast clearing with mechanical contacts for low steady-state loss—balancing performance and cost for many renewable and EV applications.
Research highlights the range of mechanical, solid-state, and hybrid solutions used across DC systems.
Types & Applications of DC Circuit Breakers
Mechanical, solid-state, and hybrid DC breakers find use across residential, commercial, and industrial DC systems, including HVDC networks, where tailored interruption characteristics are required to protect equipment.
Applications of various types of circuit breakers in electrical power systems: a review, PI Obi, 2021
Where Are DC Circuit Breakers Applied and Why Are They Critical?
DC circuit breakers are essential across renewables, energy storage, EV charging, and any system that carries significant DC power. Their correct selection and installation protect assets and people while keeping systems available and efficient.
How Are DC Circuit Breakers Used in Solar Photovoltaic Systems?
In PV systems, DC breakers isolate strings, protect inverters, and guard battery connections. They help contain faults and allow maintenance without shutting down larger portions of the array, which supports both safety and uptime.
What Roles Do DC Breakers Play in Electric Vehicle Charging and Battery Storage?
DC breakers protect chargers, battery packs, and DC busbars from short circuits and overloads. As EV and storage systems scale, reliable DC protection becomes a core safety and performance requirement for charging stations and energy systems.
How Do DC Circuit Breakers Compare to AC Circuit Breakers?
Knowing the differences helps ensure you use the right device for the job. DC and AC breakers may look similar, but their interruption strategies and internal designs differ because of the current waveform.
What Are the Key Differences Between DC and AC Circuit Breakers?
AC breakers can rely on the zero-crossing points of alternating current to help extinguish arcs. DC breakers must extinguish a continuous arc through design features like arc chutes, magnetic blowouts, or electronic interruption. Those differences drive different ratings and application limits.
Why Are Specialized DC Circuit Breakers Necessary for DC Systems?
Specialized DC breakers address DC’s sustained arcing and different fault dynamics. Using the correct DC-rated breaker reduces the risk of failed interruption, excessive contact wear, or unsafe conditions—so always match the breaker type to the system’s current type and ratings.
How to Choose the Right DC Circuit Breaker for Your Application
Picking the correct breaker depends on system voltage, prospective fault current, continuous current, environmental conditions, and compliance with relevant standards.
Get a quote for custom DC circuit breakers from Langir
What Voltage, Current Ratings, and Breaking Capacities Should You Consider?
Confirm the breaker’s DC voltage rating, continuous current rating, and breaking capacity exceed your system’s maximum operating and fault conditions. Overspecifying breaking capacity gives margin against unexpected faults; underspecifying risks unsafe interruption and equipment damage.
What Environmental and Certification Factors Affect DC Circuit Breaker Selection?
Account for ambient temperature, humidity, altitude, and corrosive environments when selecting a breaker. Also verify applicable certifications—UL, IEC, or regional standards—to ensure the device meets safety and performance expectations for your market.
DC circuit breakers are a fundamental safety component for modern electrical installations. Understanding how they work and matching the right type to your system keeps equipment protected and systems reliable. For tailored product recommendations and technical support, please contact us.
How a DC Circuit Breaker Works | FAQs
What maintenance is required for DC circuit breakers?
Routine inspections, contact cleaning, and trip-function testing keep DC breakers reliable. Check for corrosion, mechanical wear, and proper operation of arc-extinguishing parts. Follow the manufacturer’s maintenance schedule and perform load or functional tests as recommended.
Can DC circuit breakers be used in AC applications?
Generally no. DC breakers are engineered for continuous-current interruption and may lack the characteristics optimized for AC zero-crossing behavior. Use the breaker type specified for the system’s current waveform to ensure safe interruption.
How do I determine the right breaking capacity for my DC circuit breaker?
Calculate the maximum prospective fault current for your system and select a breaker with a higher breaking capacity. Where calculations are complex, consult an electrical engineer or use industry-standard methods to size protective equipment correctly.
What are the safety standards for DC circuit breakers?
Key standards include regional and international specifications such as UL listings and IEC standards (for example, IEC 60947 series) that define testing and performance requirements. Verify the breaker’s certifications for your intended market and application.
What factors influence the lifespan of a DC circuit breaker?
Lifespan depends on operating frequency, fault history, environmental stress, and component quality. High ambient temperature, humidity, corrosive atmospheres, and frequent tripping shorten service life. Regular maintenance and choosing appropriate ratings extend operational life.
Are there any advancements in DC circuit breaker technology?
Yes. Developments include solid-state breakers, smarter hybrid designs, faster sensing electronics, and improved materials for arc control. These advances improve response time, longevity, and integration into renewable and EV systems.
Conclusion
DC circuit breakers play a key role in protecting modern electrical systems—especially in solar, storage, and electric vehicle applications. By understanding interruption principles, types, and selection criteria, you can choose the right protection for safety and long-term reliability. For application-specific guidance and product details, please contact us.
