How to Fix a Capacitive Switch: Expert Tips & Tricks

Capacitive switches are fundamental to modern industrial systems, but their reliability can be compromised by erratic responses or complete failure in demanding environments. This comprehensive guide will equip you with the knowledge to diagnose prevalent issues, execute precise repairs, and fine-tune performance across five critical domains: unresponsiveness, spurious activations, sensitivity optimization, interference suppression, and proactive maintenance. We’ll also demonstrate how a robust Langir CP Series switch or a tailored solution can deliver lasting value and operational efficiency.

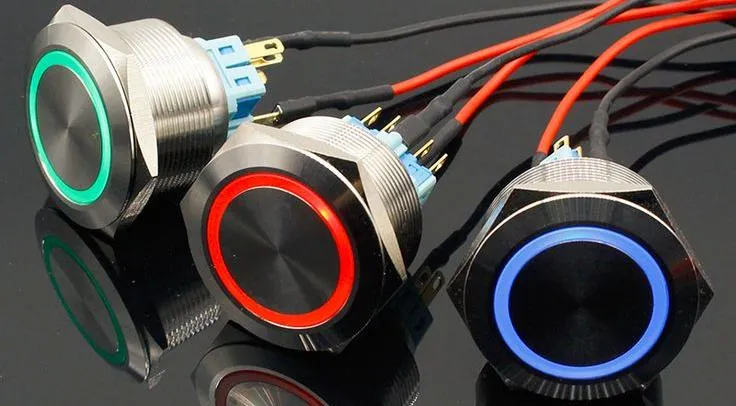

Identifying Common Malfunctions in Capacitive Switches

Capacitive switches frequently exhibit specific recurring issues that compromise their operational integrity within industrial environments. The four most prevalent challenges include:

Unresponsiveness – Failure to detect touch inputs, often stemming from power supply irregularities, wiring faults, or internal component degradation.
Spurious Activations – Unintended activations triggered by electrical noise, electromagnetic interference, or parasitic capacitance.
Sensitivity Discrepancies – Inconsistent response thresholds, resulting in either missed activations or phantom touches.
Environmental Interference – Disruption of the sensing field by electromagnetic/radio-frequency interference (EMI/RFI), moisture ingress, or conductive particulate contamination.

Each of these distinct faults necessitates a precise diagnostic and remediation strategy to reinstate consistent and reliable switch functionality.

Identifying Common Malfunctions in Capacitive Switches

Get a quote for custom capacitive switches from Langir

Capacitive Switch Diagnostics

Capacitive switches are susceptible to issues like unresponsiveness, spurious activations, and sensitivity inconsistencies, often attributable to power supply anomalies, electromagnetic interference, or adverse environmental factors. Resolving these challenges mandates a systematic diagnostic and repair methodology, encompassing power verification, contact surface purification, and precise sensitivity calibration.

Smith, A., “Troubleshooting Capacitive Touch Sensors” (2022)

This referenced research offers a foundational overview of prevalent capacitive switch issues and their resolutions, directly supporting the comprehensive troubleshooting and repair strategies detailed within this guide.

Understanding Unresponsiveness in Capacitive Switches

An unresponsive switch fails to register touch inputs because its sensing electrode cannot detect the requisite change in capacitance. This condition commonly arises from inadequate supply voltage, compromised electrical connections, or internal circuit damage. Rectifying power supply or wiring deficiencies and ensuring pristine contact surfaces will frequently restore functionality to a non-responsive switch, enabling subsequent sensitivity validation.

Root Causes of Spurious Activations in Capacitive Switches

Spurious activations manifest when extraneous signals emulate a legitimate touch event. Electromagnetic interference (EMI) from proximate motors or radio frequency (RF) noise can artificially elevate the baseline capacitance, inadvertently triggering the sensor. Implementing robust shielding and meticulous grounding protocols is crucial to suppress these undesirable signals, ensuring the switch responds exclusively to intentional inputs.

Impact of Sensitivity Discrepancies on Capacitive Switch Performance

Sensitivity establishes the precise threshold at which the sensing electrode registers a change in capacitance. Overly high sensitivity can result in phantom activations, whereas insufficient sensitivity may cause the switch to miss subtle touch inputs. Optimizing this parameter is vital to guarantee consistent and reliable switch response, eliminating spurious triggers and enhancing control precision in industrial applications.

Mitigating Environmental Interference in Capacitive Switches

Environmental variables such as moisture condensation, conductive particulate accumulation, or extreme temperature fluctuations can significantly alter the sensor’s calibrated baseline. Such deviations frequently lead to erratic operation or complete functional failure. Implementing superior enclosure sealing, rigorous cleaning protocols, and judicious material selection are paramount to sustaining stable performance in demanding industrial environments, thereby facilitating accurate diagnostic procedures.

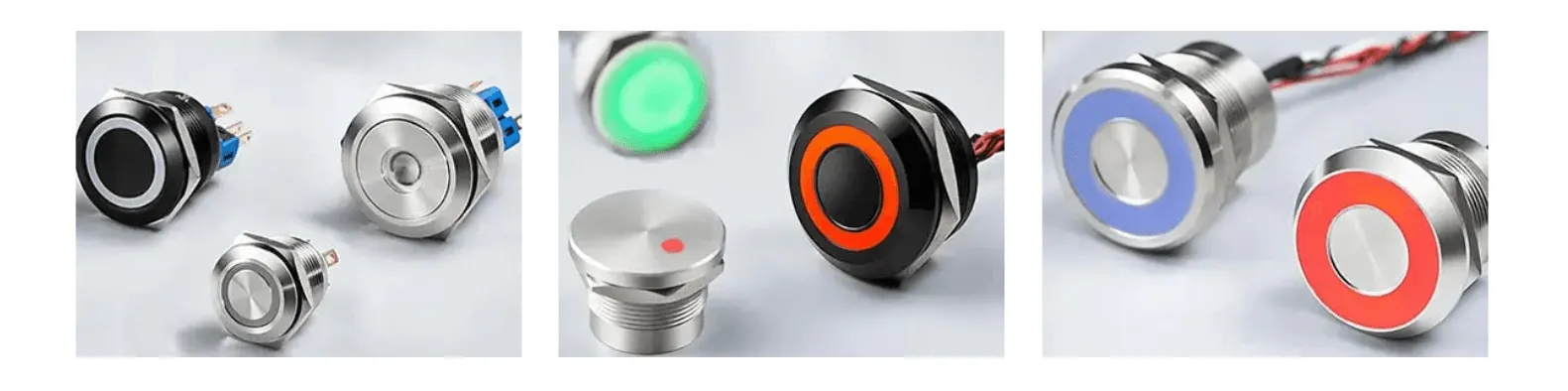

Diagnosing and Rectifying Unresponsive Capacitive Switches

Effective diagnosis of an unresponsive switch necessitates a systematic evaluation of its power supply, surface cleanliness, and internal component integrity. Re-establishing dependable touch detection directly contributes to enhanced operational uptime and reduced service interventions.

Get a quote for custom capacitive switches from Langir

Verifying Power Supply and Connection Integrity for Capacitive Switches

Initiate all troubleshooting procedures by confirming that the supply voltage precisely matches the switch’s specified operational requirements. Subsequently:

Utilize a multimeter to accurately measure voltage at the switch terminals.
Thoroughly inspect all wiring harnesses for any indications of loose or corroded contacts.
Verify that the ground reference is robust and free from electrical noise.

Guaranteeing a clean and stable power supply is foundational for accurate touch sensing and proactively prevents the occurrence of spurious faults.

Optimal Cleaning Protocols for Capacitive Switch Surfaces

Proper cleaning eliminates conductive films that impede accurate capacitance change detection. To restore optimal contact sensitivity:

Employ isopropyl alcohol and a non-abrasive, lint-free cloth to meticulously clean the sensor surface.
Refrain from using abrasive solvents, which can compromise dielectric coatings.
Ensure complete evaporation of all cleaning solvents prior to re-energizing the system.

A meticulously clean electrode surface is essential for maintaining consistent sensitivity and preparing the switch for precise calibration.

Assessing Physical Damage and Determining Component Replacement

Physical damage, such as micro-fractures in the dielectric layer or printed circuit board (PCB) delamination, directly compromises sensing integrity. Conduct an inspection whenever:

Initial cleaning and power supply verifications do not restore operational responsiveness.
Visible signs of wear or thermal damage are present on the electrode surface.
Intermittent operational behavior continues despite standard maintenance procedures.

Recognizing these critical failure indicators is crucial for determining the most cost-effective solution: localized repair or complete module replacement.

Optimizing Capacitive Switch Sensitivity for Enhanced Responsiveness

Sensitivity adjustment precisely calibrates the switch’s detection threshold, guaranteeing reliable activation across diverse environmental conditions. Meticulously fine-tuning this parameter significantly enhances both operational accuracy and user interaction.

Get a quote for custom capacitive switches from Langir

Techniques for Calibrating Capacitive Switch Sensitivity

Sensitivity adjustments can be executed through various mechanisms, including onboard trim potentiometers, configurable jumpers, or dedicated programming interfaces:

Rotate the sensitivity potentiometer clockwise to augment responsiveness.
Reconfigure DIP switches or jumpers to select pre-calibrated sensitivity levels.
Utilize a software utility to establish precise digital thresholds on programmable logic controllers.

Capacitive Switch Sensitivity Calibration

Precise sensitivity adjustments are paramount for ensuring consistent and reliable activation of capacitive switches across diverse operational conditions. These calibrations are achievable via onboard potentiometers, configurable jumpers, or software-based interfaces. Implementing meticulous calibration procedures, including leveraging auto-calibration modes where available, is critical to prevent erratic switching behavior and guarantee accurate touch detection.

Jones, B., “Optimizing Capacitive Sensor Performance” (2023)

This referenced research substantiates the article’s detailed discussion on sensitivity adjustment protocols and underscores the critical importance of calibration for achieving optimal capacitive switch performance.

Influence of Dielectric Materials and Electrode Geometry on Sensitivity

Switch sensitivity is intrinsically linked to both dielectric material thickness and electrode geometry. A reduced dielectric layer thickness or an expanded electrode surface area enhances capacitance coupling, thereby decreasing the required activation force. Comprehending these fundamental design principles is essential for guiding the selection of custom switches tailored to specific industrial panel requirements.

Strategies to Mitigate Over-Sensitivity and Under-Sensitivity Issues

Achieving and sustaining balanced sensitivity necessitates adherence to three key practices:

Re-validate calibration settings following any cleaning procedures or enclosure modifications.
Leverage auto-calibration modes, if supported, to dynamically adapt to gradual environmental shifts.
Integrate a small external capacitor (e.g., 47 pF) on TTP223-based modules for precise response fine-tuning.

Adhering to these steps effectively prevents erratic switching behavior while ensuring that even subtle touch inputs are reliably registered.

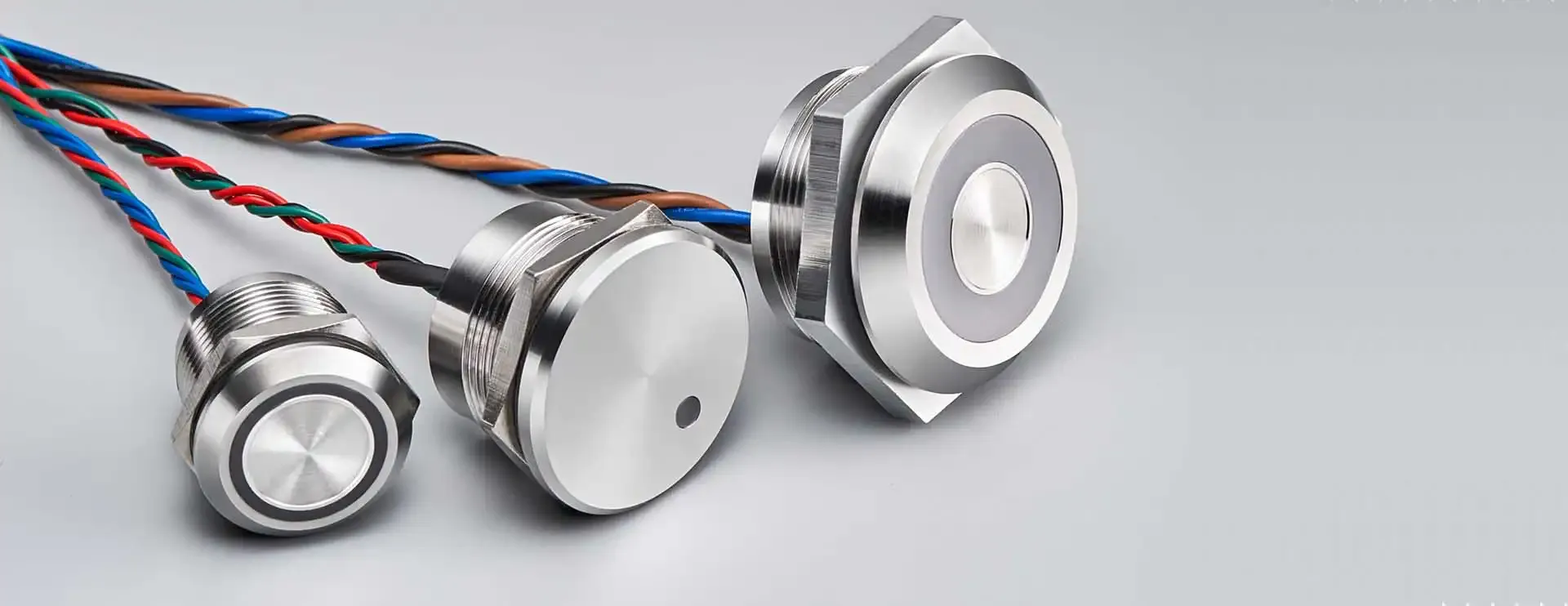

Suppressing Spurious Activations and Interference in Capacitive Switches

Effective suppression of unintended activations mandates robust shielding, meticulous grounding, and precise signal filtering. These integrated measures are critical for ensuring stable and reliable sensing, even within electrically noisy industrial environments.

Get a quote for custom capacitive switches from Langir

Effective Shielding Methodologies for Reducing Electromagnetic Interference (EMI)

Enclose the switch module within a properly grounded metallic housing.
Apply conductive foam or rubber gaskets strategically around panel cutouts.
Integrate ferrite beads onto power and signal leads to attenuate high-frequency noise.

Appropriate shielding effectively diverts interference to ground, thereby stabilizing touch detection even during the operation of heavy machinery.

The Role of Meticulous Grounding in Enhancing Capacitive Switch Stability

Ensure all metallic panels and enclosures are bonded to a singular, common ground point.
Implement star-point grounding configurations for control cabinet rails.
Verify that ground conductors are of adequate gauge and minimal length to reduce impedance.

Consistent and robust grounding establishes a dependable baseline capacitance, significantly reducing activation errors, particularly when panel wiring configurations are altered.

Circuit Design and Noise Filtering Strategies to Prevent Spurious Activations

Incorporating straightforward RC (Resistor-Capacitor) filters or advanced digital signal averaging circuits can effectively mitigate transient spikes:

Position a resistor-capacitor (RC) network across the sensor input.
Utilize microcontroller firmware-based filters to disregard rapid, transient toggles.
Implement shielded cables for all sensor wiring connections.

These strategic design modifications effectively suppress transient noise, ensuring the switch responds exclusively to deliberate touch inputs and paving the way for more advanced repair considerations when required.

Strategic Repair vs. Replacement of Capacitive Switch Components

Understanding which components to service and the appropriate methodology significantly reduces downtime and extends the operational lifespan of equipment. Replacing degraded electrodes or printed circuit boards (PCBs) can restore original performance specifications without necessitating complete module replacements.

Get a quote for custom capacitive switches from Langir

Key Capacitive Switch Components Requiring Repair or Replacement

The primary serviceable components typically include:

Component	Function	Replacement Criterion
Sensing Electrode	Detects touch inputs via capacitance change	Visible surface wear, corrosion, or significant degradation of sensitivity
Printed Circuit Board (PCB)	Processes and interprets capacitance signals	Evidence of thermal damage (burn marks), individual component failure, or board delamination
Wiring Harness	Transmits power and data signals	Frayed or compromised insulation, intermittent electrical contacts

Safe Procedures for Replacing Capacitive Switch Electrodes and Circuit Boards

Adhere to the following protocols for secure component replacement:

De-energize and implement lockout/tagout procedures on the control system.
Carefully remove the bezel and disconnect the associated wiring harness.
De-solder or unclip the electrode or PCB assembly as required.
Install replacement components strictly adhering to manufacturer-specified torque values.
Reassemble the unit and conduct comprehensive power-up functional tests.

Strict adherence to established safety protocols minimizes operational risks and guarantees precise reassembly.

Determining the Cost-Effectiveness of New or Custom Capacitive Switches

When repair expenditures approach 50% of a new module’s cost, or when operational environmental demands surpass standard specifications, investing in a custom Langir CP Series switch becomes a strategically sound decision. Its inherent IK10 robustness, adaptable features, and solid-state design consistently outperform refurbished units in demanding industrial applications.

Optimal Maintenance Strategies for Extending Capacitive Switch Lifespan

Proactive preventive maintenance is crucial for sustaining switches in peak operational condition, thereby minimizing unscheduled downtime and extending service intervals.

Recommended Cleaning and Inspection Frequencies for Capacitive Switches

Conduct fundamental cleaning and inspection procedures every 3–6 months in harsh operational environments, and annually in cleaner installations. Consistent periodic checks facilitate the early detection of contamination or wear, enabling timely calibration and component replacement before critical failure occurs.

Critical Environmental Controls for Protecting Capacitive Switches

Sustain the following environmental conditions to preserve sensing stability:

Humidity Control – Maintain relative humidity below 85% to preclude the formation of moisture films.
Particulate Control – Mitigate dust and conductive particulate accumulation through the deployment of sealed enclosures.
Temperature Stability – Prevent rapid temperature fluctuations that can induce shifts in calibration points.

Effective control over these environmental parameters ensures consistent capacitance readings and significantly extends the operational lifespan of the switch.

The Contribution of Regular Sensitivity Calibration to Switch Longevity

Routine re-calibration of sensitivity effectively compensates for dielectric material aging and minor environmental deviations. Implementing scheduled auto-calibration or manual threshold resets is vital for preserving accurate touch detection and extending the effective operational lifespan of capacitive switch modules.

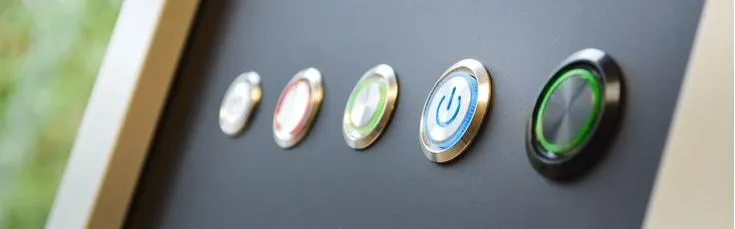

Leveraging Custom Capacitive Switches to Resolve Persistent Challenges

Tailored custom designs are engineered to address unique industrial requirements, effectively eliminating recurring faults and optimizing performance in the most demanding applications.

Get a quote for custom capacitive switches from Langir

Langir’s Customization Capabilities for Capacitive Switches

The Langir CP Series offers extensive customization options, including:

Dimensions: Available in 16 mm, 19 mm, 22 mm, and 25 mm diameters.
Material Options: Fabricated from high-grade stainless steel, nickel-plated brass, or anodized aluminum.
Illumination Configurations: Featuring single-ring, dot, bi-color, and tri-color LED illumination options.

How Tailored Designs Mitigate Interference and Optimize Sensitivity

Through precise adjustments to dielectric layer thickness, electrode geometry, and integrated shielding, custom-engineered switches establish stable capacitance baselines that inherently resist electromagnetic interference (EMI) and radio-frequency interference (RFI). Precision machining and judicious material selection further optimize sensitivity for the unique operational conditions of each specific application.

Requesting a Quote or Technical Support for Custom Capacitive Switches

For high-volume orders or highly specialized designs, we encourage you to engage directly with our engineering team to discuss precise specifications and obtain a competitive quotation. For tailored solutions or expert technical guidance, please do not hesitate to contact our dedicated team at your convenience.

Frequently Asked Questions: Capacitive Switch Troubleshooting and Repair

Presented below are concise, actionable insights addressing the most critical topics concerning capacitive switch repair and adjustment.

Rapid Resolution for Unresponsive Capacitive Switches

Initiate by verifying the power supply voltage and ensuring all electrical connections are secure. Subsequently, meticulously clean the electrode surface with isopropyl alcohol and re-calibrate the sensitivity. Should the issue persist, conduct a thorough inspection for physical damage and replace any degraded components.

Is User-Level Sensitivity Adjustment Possible for Capacitive Switches?

Yes, indeed. Numerous capacitive switches incorporate onboard trim potentiometers, DIP switch configurations, or software-based interfaces that enable users to precisely adjust the capacitive threshold without requiring specialized instrumentation.

Causes and Mitigation Strategies for Spurious Touch Activations

Spurious touch activations typically originate from electromagnetic interference (EMI), radio-frequency interference (RFI), or parasitic capacitance. These can be effectively mitigated through the implementation of robust shielding, meticulous panel grounding, and the application of RC filters or firmware-based noise suppression algorithms.

Safety Considerations for Self-Repair of Capacitive Switch Components

Repairing electrodes and printed circuit boards (PCBs) is feasible and safe, provided you rigorously adhere to lockout/tagout procedures, utilize appropriate electrostatic discharge (ESD) protection, and employ correct soldering methodologies. If any uncertainty exists, it is strongly advised to consult a certified technician.

Recommended Maintenance Frequency for Capacitive Switches in Industrial Environments

Within environments characterized by high dust levels or susceptibility to moisture, it is recommended to schedule maintenance every 3–6 months. For cleaner installations, annual comprehensive check-ups are generally sufficient to ensure sustained long-term reliability.

Proficient capacitive switch troubleshooting and repair are instrumental in re-establishing dependable touch control within challenging industrial environments. By systematically diagnosing unresponsiveness, precisely calibrating sensitivity, effectively mitigating interference, and diligently executing preventive maintenance—and by leveraging custom Langir CP Series solutions when specific needs arise—you can significantly minimize operational downtime and optimize system performance for extended periods.
