DC circuit breakers protect electrical circuits from overloads and short circuits, keeping installations safe and reliable where direct current (DC) is used. This guide walks through common DC breaker types, their typical applications, and the technical differences that set DC protection apart from AC. It’s written for engineers, installers, and system designers who need clear, actionable guidance on selecting the right protection. We also summarize Langir Electric’s solutions and customization options to help you specify the right product for your project.
What is a DC Circuit Breaker and Why is it Essential?
A DC circuit breaker is a protective device that stops the flow of direct current when it detects an overload or a short circuit. Interrupting the current prevents equipment damage, reduces fire risk, and protects personnel. Because DC does not cross zero like AC, DC breakers require specific designs and operating methods to interrupt current safely and reliably.
Get a quote for custom DC circuit breakers from Langir
How Does a DC Circuit Breaker Protect Electrical Systems?
DC breakers monitor current and trip when they detect abnormal conditions. During an overload, they open the circuit to prevent overheating; during a short circuit, they isolate the fault quickly to limit damage. Properly selected breakers prevent cascading failures and keep systems running safely.
Recent studies highlight advanced methods for real-time DC fault interruption.
Solid-State DC Breaker for Microgrid Fault Protection
Demonstrates real-time interruption of DC faults using an active injection circuit. Low-voltage solid-state DC breakers can provide fast, reliable fault protection for isolated DC microgrid clusters.
Low-voltage solid-state DC breaker for fault protection applications in isolated DC microgrid cluster, MSS Danish, 2019
What Makes DC Circuit Protection Unique Compared to AC?
The main difference is that DC lacks the natural zero-crossing found in AC. Without that periodic zero, interrupting DC can produce sustained arcing, so DC breakers incorporate specialized arc-management features—magnetic blowout coils, arc chutes, and other measures—to extinguish arcs and safely break the circuit.
This need for effective arc extinction is well documented in arc-extinction research.
Magnetic Blow-Out for DC Arc Extinction
Direct current is harder to interrupt than AC because AC benefits from current-zero points. Magnetic blow-out devices are commonly used to extinguish DC arcs and improve interruption reliability.
Fundamental characteristics of arc extinction by magnetic blow-out at DC voltages (< 500V) II, 2015
What are the Main Types of DC Circuit Breakers?
DC circuit breakers come in several formats to match different voltages, currents, and environments. Choosing the right type depends on system size, fault levels, and installation constraints.
What are DC Miniature Circuit Breakers and Their Uses?
DC miniature circuit breakers (MCBs) are compact devices for low-voltage applications, commonly used in residential and light commercial systems. They’re easy to install and reliable for small circuits, but their interruption capability limits them to lower-voltage DC applications where fault currents are manageable.
How Do Molded Case Circuit Breakers Differ in DC Applications?
Molded case circuit breakers (MCCBs) are built for higher currents and voltages, making them appropriate for industrial DC systems. MCCBs offer greater breaking capacity and typically include enhanced arc-extinguishing features so they can handle the sustained currents and higher fault levels found in larger DC installations.
Where are DC Circuit Breakers Commonly Applied in Industry?
DC circuit breakers are used across many industries wherever DC power is present. They’re critical for protecting equipment, maintaining uptime, and meeting safety requirements.
Get a quote for custom DC circuit breakers from Langir
How Do DC Circuit Breakers Protect Solar Photovoltaic Systems?
In photovoltaic systems, DC breakers protect solar arrays, combiner boxes, and inverters from overloads and faults. Rapid isolation of faults helps prevent equipment damage and preserves system performance, which is essential for reliable energy production.
What Role Do DC Breakers Play in Electric Vehicle Charging Infrastructure?
DC breakers are essential in EV fast-charging stations to manage high charging currents and protect chargers and battery systems. Proper DC protection ensures safe operation, reduces downtime, and supports compliant, dependable charging infrastructure.
How Do AC and DC Circuit Breakers Differ?
Understanding the differences between AC and DC protection helps you choose the right device. The key distinctions are in how each type handles arc interruption and fault transients.
Why Can’t AC Circuit Breakers be Used for DC Circuits?
AC breakers rely on the AC waveform’s zero-crossings to help extinguish arcs. In DC systems, that zero-crossing is absent, so using AC-designed breakers can lead to prolonged arcing and potential equipment damage. For safe, reliable interruption of DC currents, purpose-built DC breakers are required.
The different fault behavior in DC systems means AC protection strategies often aren’t sufficient for DC grids.
DC Grid Fault Protection System Design
Protection schemes designed for AC power systems do not always translate to DC systems, because DC fault transients behave fundamentally differently. Effective DC protection requires purpose-built analysis and design.
Fault analysis and protection system design for DC grids, A Ukil, 2020
What are the Key Design Differences Between AC and DC Breakers?
Design differences focus on arc control and interruption methods. DC breakers commonly add magnetic blowouts, longer arc paths, and arc chutes to manage continuous current; AC breakers take advantage of waveform zero-crossings and can use simpler interruption mechanisms.

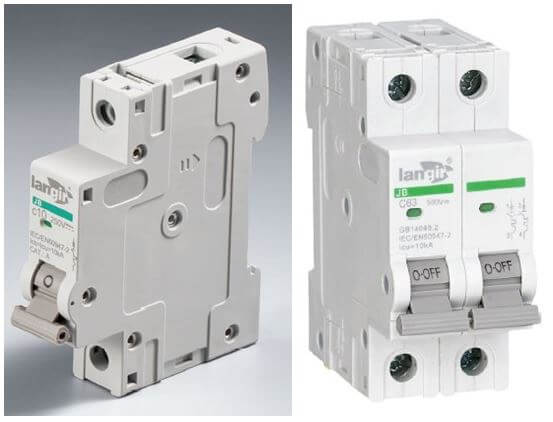

How Does Langir’s JB Series Enhance DC Circuit Breaker Performance?
Langir’s JB Series is engineered for dependable DC protection across industrial and commercial applications. The series integrates features aimed at safe interruption, compact installation, and operational reliability.
What Features Ensure Safety and Reliability in Langir’s DC Breakers?
Langir DC breakers include bidirectional current protection and a lockable OFF position for secure maintenance isolation. These design choices reduce operational risk and simplify safe servicing in demanding DC environments.
How Does Langir’s Customization Service Meet Industrial Needs?
Langir Electric offers customization options to adapt breakers to specific electrical, mechanical, and regulatory requirements. Tailored solutions help businesses meet unique operational needs and streamline system integration.

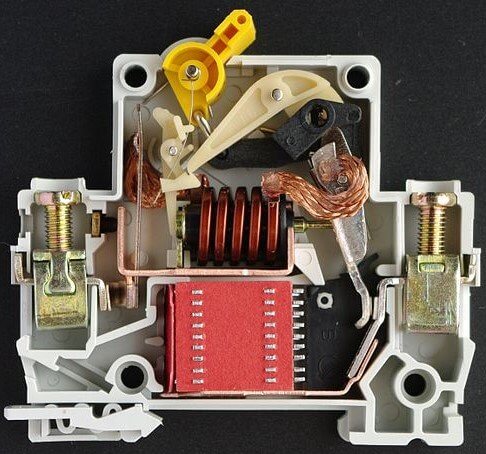

How to Select the Right DC Circuit Breaker for Your Application?
Choosing the right DC breaker requires matching the device to your system’s electrical and environmental conditions so it can protect reliably under real-world faults.
Get a quote for custom DC circuit breakers from Langir
What Technical Factors Should Guide DC Circuit Breaker Selection?
Key factors include system voltage and continuous current, peak and fault current levels, breaking capacity, environmental ratings (temperature, humidity, corrosion), and installation constraints. Compliance with applicable standards and coordination with upstream/downstream protection is also essential.
How Do Voltage, Current, and Breaking Capacity Influence Choice?
Voltage and current ratings determine the breaker’s normal operating range, while breaking capacity defines the maximum fault current the breaker can interrupt safely. Select a breaker with ratings and a safety margin that exceed your system’s maximum expected fault current to ensure reliable protection.
What is a DC Circuit Breaker | FAQs
What are the advantages of using DC circuit breakers in renewable energy systems?
DC breakers protect sensitive components like inverters and batteries, isolate faults quickly to prevent equipment damage, and are engineered to handle DC-specific interruption challenges—making them a better match than AC breakers for many renewable installations.
How do environmental conditions affect the performance of DC circuit breakers?
Temperature, humidity, dust, and corrosive atmospheres can reduce a breaker’s reliability and service life. Choose breakers with appropriate IP/enclosure ratings and materials for the environment, and follow manufacturer guidance for installations in harsh conditions.
What maintenance practices are recommended for DC circuit breakers?
Regular visual inspections, functional trip testing, cleaning and tightening of terminals, and following the manufacturer’s maintenance schedule keep breakers reliable. Address signs of wear, overheating, or corrosion promptly to avoid failures.
Can DC circuit breakers be used in residential applications?
Yes—DC breakers are commonly used in residential renewable systems such as rooftop solar arrays. Ensure the breaker’s type, voltage, and current ratings match the system and consult a qualified electrician for proper selection and installation.
What are the latest advancements in DC circuit breaker technology?
Advances include solid-state breakers with faster response and enhanced fault detection, and improved arc-extinction techniques such as magnetic blowout and active current injection. These developments increase reliability and reduce maintenance needs in demanding applications.
How do I determine the appropriate breaking capacity for a DC circuit breaker?
Calculate the maximum potential fault current for your system considering source impedance and configuration. Choose a breaker whose breaking capacity exceeds that value with an appropriate safety margin. If needed, consult an electrical engineer or the breaker manufacturer for accurate calculation guidance.
Conclusion
DC circuit breakers are a critical safety element for renewable-energy systems, EV charging, and other DC-powered installations. Understanding their unique requirements—especially arc management and breaking capacity—helps you specify the right device for reliable operation. For tailored DC protection solutions, explore Langir Electric’s product range and customization services to find the best fit for your project.
