Imagine standing at your vessel’s helm with a sleek control pad that activates navigation lights, bilge pumps and electronics at the touch of a button—that’s the promise of a push button marine switch panel. Traditional rocker or toggle panels can corrode, misfire or clutter the dash under harsh saltwater conditions, creating reliability gaps and safety risks. In this guide, you’ll discover what defines these panels, why they’re ideal for marine environments, the must-have features of a high-quality unit, how Langir’s customization services can tailor panels to your industrial needs, real-world applications across different vessels, key selection criteria and step-by-step installation and maintenance best practices. By the end, you’ll know exactly how to specify, order in bulk, and maintain your push-button marine switch panel at peak reliability.

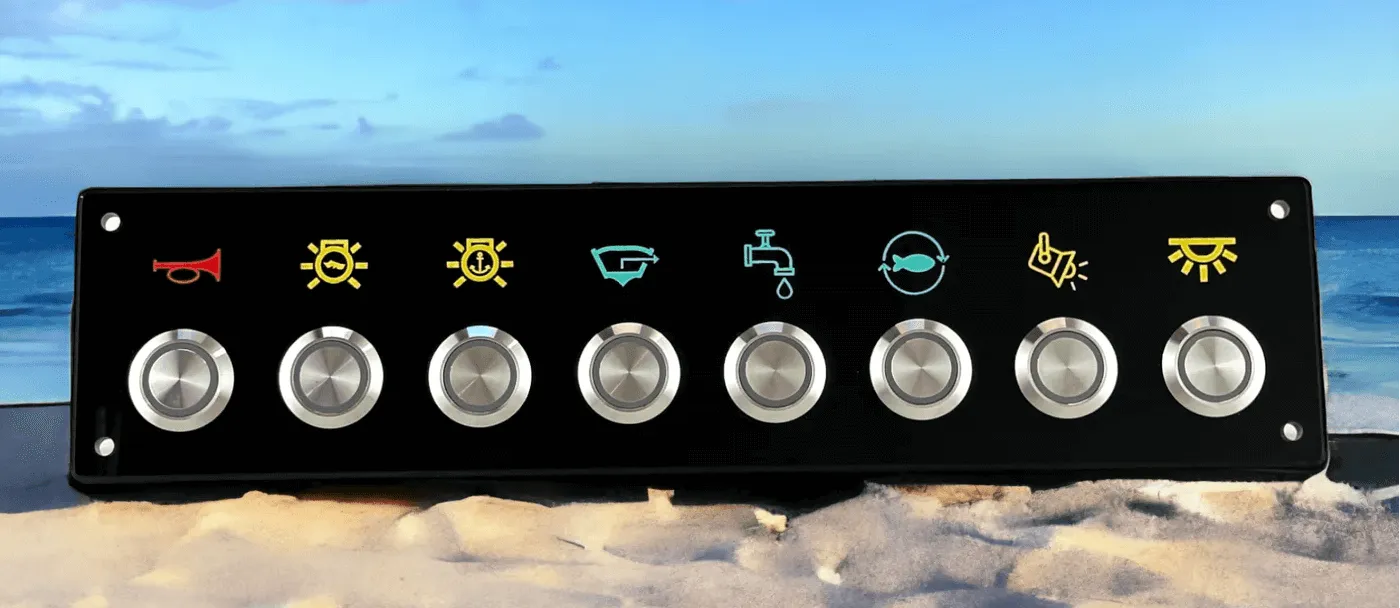

What Defines a Push Button Marine Switch Panel
A push button marine switch panel is a centralized electrical control hub that uses sealed push button switches to manage onboard systems. It combines marine-grade buttons, circuit protection devices and backlighting into a rugged assembly designed for saltwater exposure, UV radiation and vibration. Understanding its core parts sets the stage for evaluating performance and customization.
Contact Langir for Custom Marine Panel Mount Switches

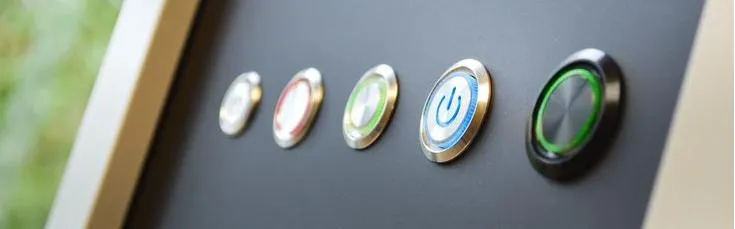

What is a Marine Push Button Switch and How Does It Work
A marine push button switch is a sealed, corrosion-resistant actuator that completes or breaks an electrical circuit when pressed. It typically uses stainless steel or reinforced plastic housings with IP67/68 ratings to prevent water ingress. Pressing the button closes internal contacts, allowing current flow to devices like pumps or lights, then returns to open (momentary) or stays closed (maintained) based on its latching mechanism. This reliable operation underpins the panel’s ability to control multiple boat systems without mechanical failure.
What Are the Differences Between Momentary and Maintained Push Button Switches
Before choosing buttons, it’s essential to distinguish the two main contact actions:
Momentary switches improve safety for short bursts—such as sounding a horn—while maintained switches stay engaged for continuous loads like navigation lights. Selecting the right type ensures precise control across all onboard functions.
How Does a Push Button Marine Switch Panel Control a Boat’s Electrical System
A push button marine switch panel integrates individual switches with circuit breakers or fuses, wiring harnesses and LED indicators to form a single control point. When you press a button, the panel’s internal bus distributes 12 V or 24 V power to the corresponding circuit. Built-in breakers instantly disconnect power under overload conditions, protecting wiring and equipment. LED backlights and status indicators provide clear feedback at night or in rough seas, ensuring you always know which system is active and safe.
Why Choose a Push Button Marine Switch Panel for Marine Applications
Choosing a push button panel elevates reliability, usability and aesthetics compared to conventional switch systems. These advantages translate directly into safer passages and streamlined operations on any vessel.
Contact Langir for Custom Marine Panel Mount Switches
What Are the Durability Features That Make These Panels Ideal for Marine Environments
Push button panels are engineered to resist salt spray, UV rays and constant vibration. Key durability features include:
- Sealed IP67 or IP68-rated enclosures that block high-pressure water jets and temporary immersion.
- Corrosion-resistant 316 stainless steel or reinforced polymer fronts to prevent rust and pitting.
- IK10-rated actuators that withstand impact and mechanical stress without misalignment.
Durability of Marine-Grade Materials
Marine environments expose equipment to harsh conditions, including saltwater, UV radiation, and vibration, which can lead to corrosion and mechanical failure. Using materials like 316 stainless steel and reinforced polymers with UV inhibitors is crucial for withstanding these elements and ensuring long-term performance in marine applications.
This research supports the article’s emphasis on the importance of material selection for the longevity of push button marine switch panels.
How Does a Push Button Design Improve Safety and Usability on Boats
A flush-mount push button design enhances safety by minimizing accidental activation and snag points on the dash. Positive tactile feedback confirms each press, and multi-color LEDs communicate system status at a glance. Rounded edges and flat profiles simplify cleaning and reduce injury risk during rough seas. This intuitive interface helps both novices and seasoned captains operate essential systems without hesitating, promoting safer navigation and quicker emergency responses.
What Are the Space-Saving and Aesthetic Benefits of Push Button Panels
Modern push button panels free up valuable dashboard real estate with low-profile layouts that consolidate multiple circuits into a single assembly. Their uniform, backlit surface contributes to a clean, professional helm appearance, seamlessly integrating with carbon-fiber dash inserts or custom fiberglass housings. A sleek panel not only improves ergonomics but also upgrades the vessel’s resale appeal, reflecting advanced technology and thoughtful design.
Essential Features of a High-Quality Push Button Marine Switch Panel
Investing in a top-tier panel means looking beyond aesthetics to core performance attributes that ensure ongoing reliability and safety under demanding marine conditions.
Contact Langir for Custom Marine Panel Mount Switches
How Do IP Ratings Like IP67 and IP68 Ensure Waterproof Protection
IP Ratings and Waterproof Protection
Ingress Protection (IP) ratings, such as IP67 and IP68, are essential for marine switch panels to ensure they can withstand water exposure. These ratings indicate the level of protection against water jets and submersion, guaranteeing the electrical contacts remain functional even in wet conditions.
This citation clarifies the importance of IP ratings in ensuring the waterproof integrity of marine switch panels, as discussed in the article.
High IP ratings guarantee that pressurized cleaning, rain and waves won’t compromise electrical contacts, allowing confident deck-washing and wet conditions without panel damage.
Why Are Marine-Grade Materials Like 316 Stainless Steel Crucial for Longevity
316 stainless steel delivers exceptional corrosion resistance thanks to its molybdenum content, which blocks chloride attack common in saltwater atmospheres. Panels fabricated from this alloy resist pitting and maintain structural integrity over years of direct exposure. Reinforced plastic options with UV inhibitors offer a lighter-weight alternative while still delivering robust chemical and impact resistance for long service life on sportfishing boats and commercial vessels alike.
How Do Integrated Circuit Protection Devices Enhance Electrical Safety
Built-in circuit breakers and blade fuses in each switch gang instantly interrupt power if current exceeds safe thresholds. This integrated protection prevents wiring overheating, fire risk and equipment damage. Auto-reset breakers restore operation after transient faults, while manual-reset types allow diagnostic inspection following serious overloads. Combining switches and breakers in one module streamlines installation and ensures each circuit has dedicated, accessible protection.

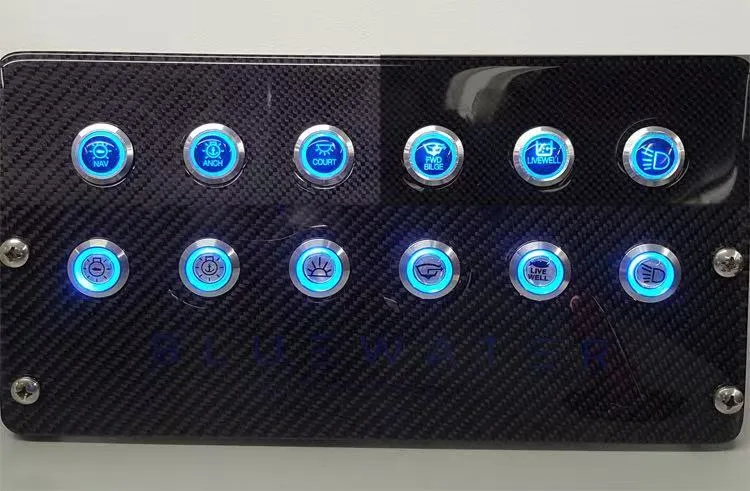

What Role Does LED Backlighting Play in Marine Switch Panels
LED backlighting ensures clear visibility of labels and active circuits during night navigation or low-light conditions. Bi-color LEDs distinguish between on/off states—green for active, red for fault—so you can monitor system health at a glance. Low-power draw LEDs minimize battery drain, and adjustable brightness controls reduce glare in dark watch environments. Consistent illumination across the panel surface also enhances dash aesthetics and user confidence under any lighting scenario.
How Can Customization Improve Your Push Button Marine Switch Panel: Langir’s Tailored Solutions
Off-the-shelf panels often fall short of specialized industrial requirements. Langir’s customization services allow you to specify every aspect of your switch panel for optimized performance and seamless integration.
Contact Langir for Custom Marine Panel Mount Switches

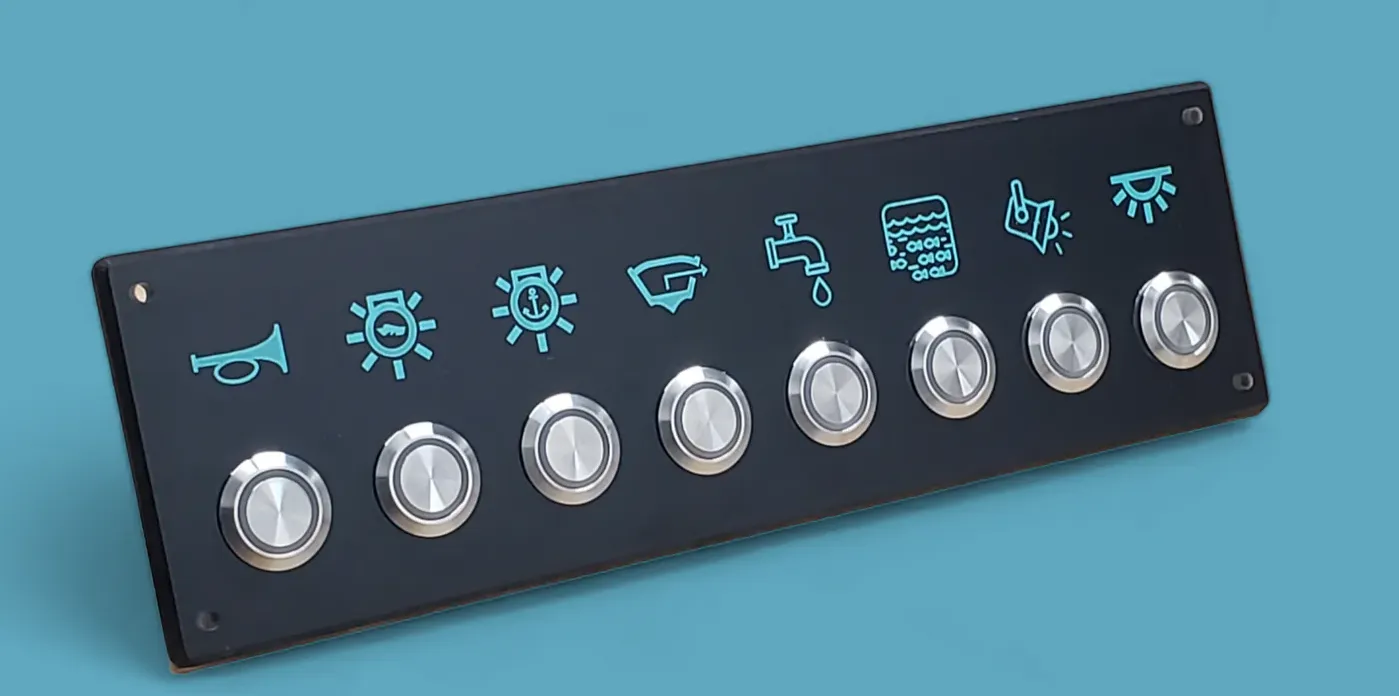

What Custom Design Options Are Available for Industrial Marine Switch Panels
Langir offers fully bespoke panel designs that let you choose:
- Panel dimensions and gang count to match your helm layout.
- Switch types (momentary, maintained, piezo or capacitive) and actuator shapes.
- Laser-engraved labels, custom icons and backlight colors for intuitive operation.
- Additional features such as USB ports, voltage meters and remote monitoring modules.
How Does Langir Support OEM and Bulk Orders for Marine Switch Panels
Langir accommodates low-volume trials and large-scale OEM production runs with streamlined manufacturing workflows. High-capacity SMT lines and automated assembly cells enable consistent output of thousands of panels per month. Dedicated project engineers manage design reviews, prototyping and compliance testing—ensuring CE, RoHS and ABYC standards are met. Flexible MOQ terms and competitive lead times let industrial manufacturing companies secure the parts they need without extended delays.
What Are the Benefits of Pre-Wired and Bespoke Marine Switch Panels
Pre-wired panels arrive ready for installation, eliminating on-board wiring errors and saving valuable dockside time. Factory-tested harnesses and connectors ensure proper polarity, secure crimp terminations and accurate routing. Bespoke wiring configurations can include labeled terminals, color-coded cables and quick-disconnect plugs to match your boat’s existing network, reducing commissioning hours and avoiding troubleshooting headaches during critical launches.

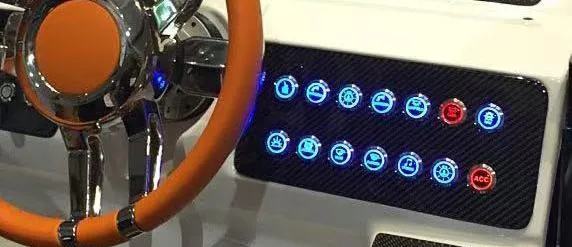

Common Applications of Push Button Marine Switch Panels on Boats
Push button panels control virtually every electrical subsystem on modern vessels, transforming how crews manage lights, pumps and electronics.
Contact Langir for Custom Marine Panel Mount Switches
How Are Push Button Panels Used to Control Navigation Lights and Bilge Pumps
Navigation light circuits demand continuous power and clear status indication. A maintained push button switch with integrated circuit breaker delivers reliable control and fault protection, while bi-color LEDs signal power confirmation. For bilge pumps, a momentary push button initiates high-capacity water evacuation cycles, engaging the pump only as needed to conserve battery life and prevent dry-run damage.
What Other Marine Systems Can These Panels Operate
Beyond lights and bilge pumps, push button panels seamlessly operate:
- Engine ignition and blower controls
- Horns, wipers and washdown pumps
- GPS, radar and communication electronics
- Entertainment systems and cabin lighting
How Do Different Vessel Types Influence Switch Panel Design
Commercial workboats require heavy-duty actuators and robust circuit protection to withstand constant use and harsh pollutants. Recreational yachts favor low-profile designs with polished stainless finishes and custom iconography for elegant integration. Military and patrol boats demand MIL-SPEC certifications, EMI-shielded housings and secure multi-pin connectors. Tailoring panel layouts and components to vessel class ensures optimal performance and compliance with industry regulations.
How Do You Select the Right Push Button Marine Switch Panel
Choosing the ideal panel involves matching technical specifications and compliance requirements to your vessel’s electrical demands.
What Technical Specifications Should You Consider
The key specs to evaluate include:
- Voltage Rating – Ensure compatibility with your 12 V or 24 V DC system.
- Amperage Capacity – Select switches and breakers rated above your peak load for safety margin.
- Number of Switch Gangs – Match the count to the number of circuits you intend to control.
- Mounting Hole Size – Verify dash cutout dimensions (e.g., 16 mm, 19 mm, 22 mm).
- Material and Finish – Choose 316 stainless steel, anodized aluminum or UV-resistant plastic as required.
Aligning these parameters with your electrical design ensures reliable operation and straightforward installation.
Why Are Certifications Like CE, RoHS, and ABYC Important
Certifications confirm that panels meet recognized safety, environmental and performance standards. CE marking indicates conformity with European directives, RoHS ensures hazard-free materials, and ABYC compliance demonstrates adherence to U.S. marine electrical best practices. Investing in certified panels reduces liability, streamlines insurance approvals and guarantees quality controls during manufacture.
How Do You Determine the Appropriate Panel Size and Mounting Options
Begin by plotting switch locations on your helm layout, accounting for operator reach and visibility. Flush-mount panels offer a neat installation with minimal protrusion, while surface-mount units simplify retrofits at the expense of a slightly higher profile. Review dash thickness and back-of-panel clearance to confirm that connectors and wiring harnesses fit without strain. Proper sizing and mounting deliver a professional finish and prevent cable pinch points.
How Do You Install and Maintain a Push Button Marine Switch Panel
Correct installation and ongoing maintenance are crucial to extend panel longevity and avoid downtime.
Contact Langir for Custom Marine Panel Mount Switches
Step-by-Step Wiring and Installation Procedures
Follow these core steps for a reliable install:
- Cut and deburr the dash opening to the panel’s specified dimensions.
- Route and secure the harness behind the dash, leaving enough slack for adjustments.
- Connect positive and negative bus bars to the vessel’s main power distribution block.
- Attach individual circuit wires to switch terminals, observing color-coding or labels.
- Tighten all fasteners to torque specifications and seal panel edges with marine-grade silicone.
- Perform a continuity check and power-up test before final trim installation.
This methodical approach prevents loose connections and guarantees each circuit operates as intended.
How Do You Perform Regular Maintenance to Extend Panel Longevity
Routine maintenance keeps panels in peak condition:
- Inspect seals and gaskets annually, replacing any that show wear or brittleness.
- Clean switch surfaces with fresh water and a mild, pH-neutral marine cleaner.
- Verify torque on terminal blocks and connector housings quarterly.
- Test circuit protection devices under load to confirm proper trip settings.
Consistent upkeep prevents corrosion, mechanical loosening and electrical faults over time.
What Are Common Issues and How Can They Be Resolved
Even high-quality panels can encounter minor issues. Typical problems and solutions include:
- Flickering LEDs: Check for loose ground connections or replace faulty backlight diodes.
- Stiff button actuation: Flush and lubricate actuator seals or replace the silicone gasket.
- Tripping breakers: Upgrade to higher-capacity devices if loads exceed original specifications.
Prompt troubleshooting using these remedies restores full functionality and avoids larger system failures.
Langir’s stainless steel marine switch panel solutions combine these industry-leading features with expert customization and bulk production capabilities. Explore our types of marine push button switches, learn about our waterproof marine switch panels and request a quote for a custom boat switch panel design to upgrade your vessel’s electrical control system today.
FAQs
What are the advantages of using a push button marine switch panel over traditional toggle switches?
Push button marine switch panels offer advantages over traditional toggle switches, including increased reliability and ease of use. They withstand harsh environments, reducing corrosion and failure. The intuitive design allows quick activation during emergencies. Their compact size saves dashboard space, creating a cleaner look. Overall, these panels enhance functionality and safety onboard.
How can I ensure the longevity of my push button marine switch panel?
Regular maintenance is key to prolonging your push button marine switch panel’s life. Inspect seals and gaskets, clean switch surfaces, verify terminal block torque, and test circuit protection devices under load to prevent corrosion, loosening, and faults.
What should I consider when customizing a push button marine switch panel?
When customizing a marine pushbutton switch panel, consider panel size, switch types, layout accessibility, and labels. Regular maintenance—such as inspecting seals, cleaning switches, tightening terminals, and testing protection devices—helps extend panel life. Adding custom backlight colors, USB ports, or voltage meters can improve usability and functionality.
How do I troubleshoot common issues with my marine switch panel?
Common marine switch panel issues like flickering LEDs often stem from loose grounds or bad diodes. Stiff buttons usually need actuator seal lubrication or gasket replacement. Frequent breaker trips require load assessment and possibly higher-capacity breakers. Regular maintenance of these helps prevent major failures and keeps the panel running smoothly.
What are the implications of using non-certified marine switch panels?
Using non-certified marine switch panels carries serious risks, such as safety hazards and legal liabilities. They may fail to meet essential safety and performance standards, leading to electrical failures or fires. Certified panels comply with industry regulations, helping protect your vessel, occupants, and ensuring insurance coverage.
Can push button marine switch panels be used in non-marine applications?
Yes, marine push button switch panels are indeed versatile and can be effectively used in non-marine applications. Their rugged, weather-resistant designs make them ideal for industrial machinery, outdoor equipment, and automotive systems where durability and reliable performance are crucial. Just be sure to select panels with appropriate voltage and amperage ratings for your specific application, and customize features as needed to meet operational requirements.
Conclusion
Investing in a push button marine switch panel enhances the reliability, safety, and aesthetics of your vessel’s electrical system. With features designed to withstand harsh marine environments, these panels ensure seamless operation of critical onboard functions. Take the next step in optimizing your boat’s performance by exploring our range of customizable switch panels. Visit our website today to discover how Langir can elevate your marine experience.
