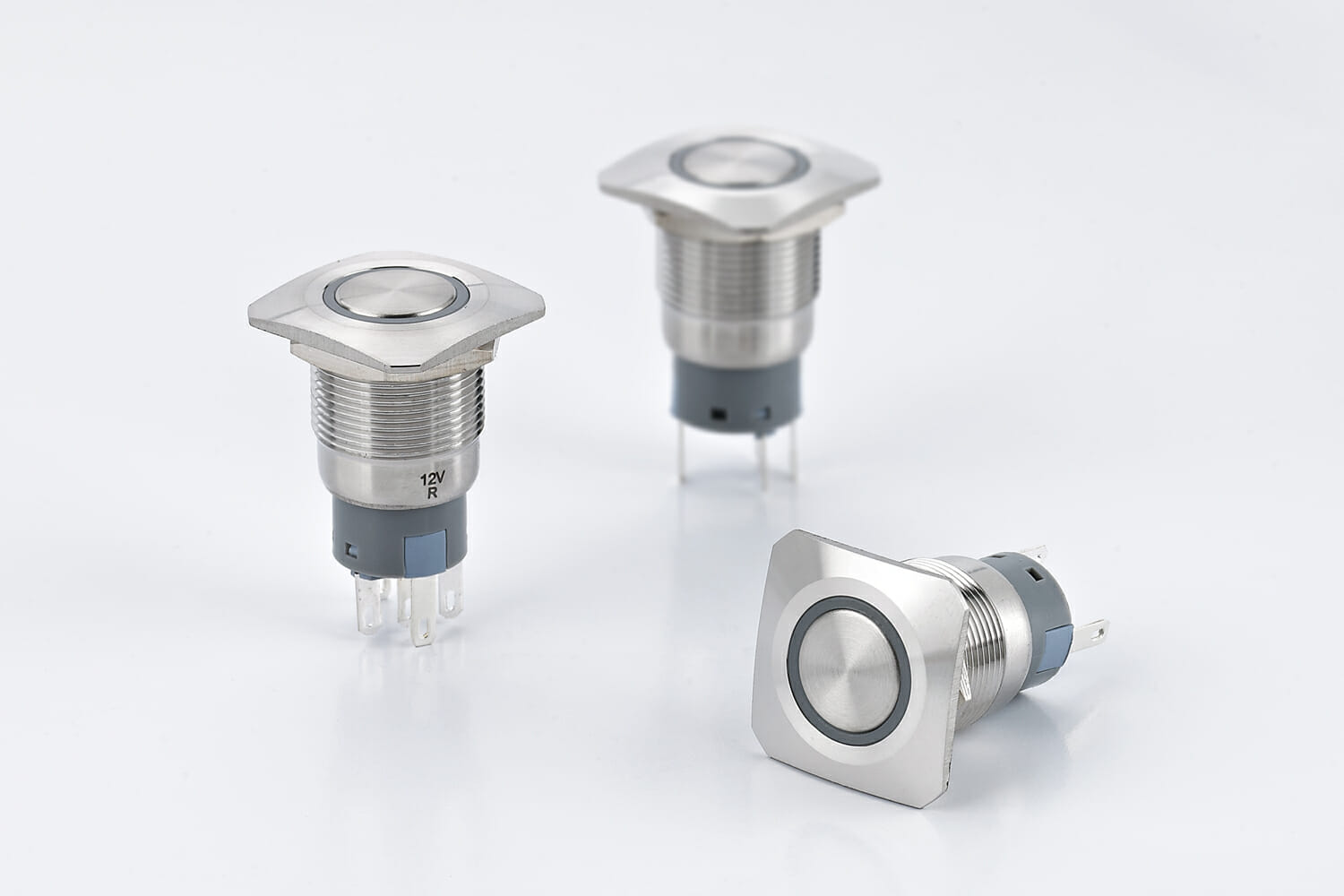

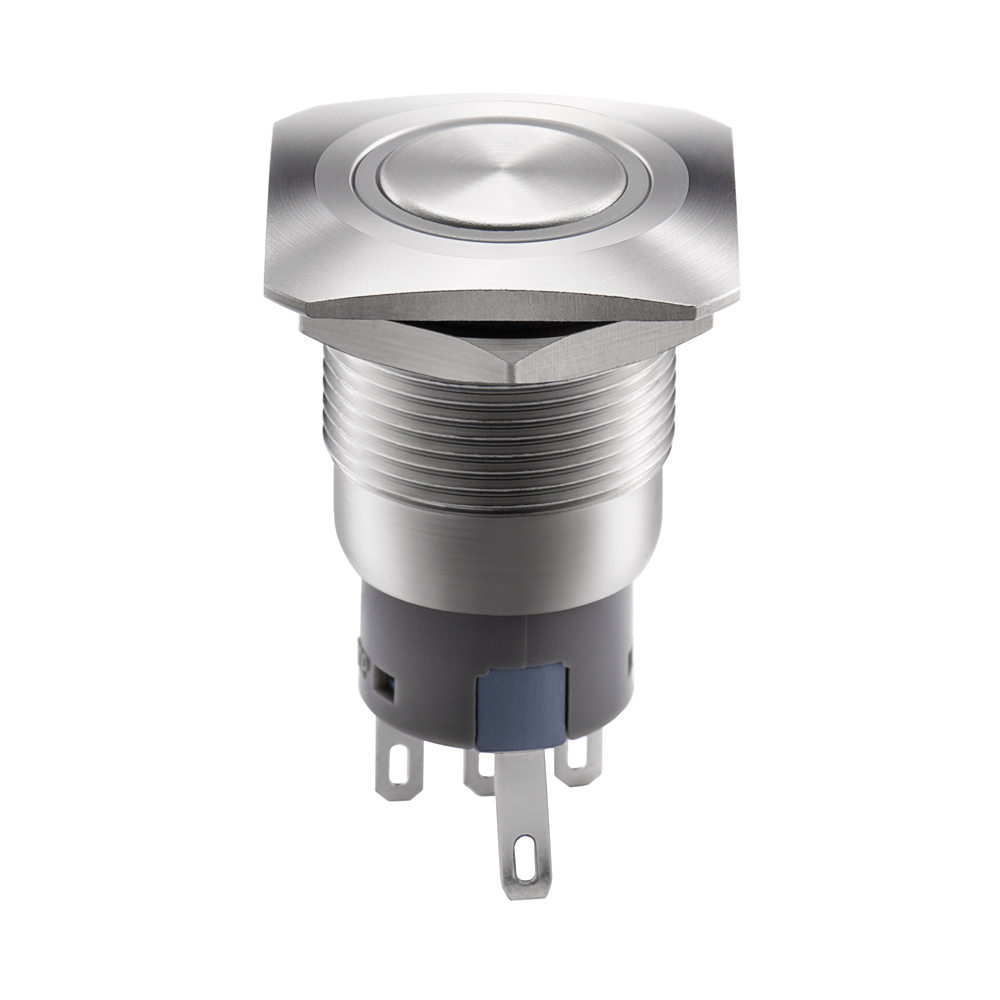

Square bezel anti-vandal switch

  • 19mm or 22mm diameter panel cutout
  • RGB LED illumination option
  • Dot, ring or symbol illumination available
  • IP65 rated for dust and moisture protection
  • Multiple function options
  • SPDT & DPDT
  • Soldered wire leads (300mm long) optional

Specifications

Electrical Rating: 5A, 250AC
Mechanical Life: 1,000,000 Cycles
Electrical Life: 50,000 Cycles
Contact Resistance: 50mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Dielectric Strength: 2,000VAC
Operating/Storage Temperature: -20°C to 55°C
Travel: 1.50mm
Moisture Protection: IP65
Actuation Force: 4N
Panel Thickness: 1-11mm
Mounting Nut Torque: 5-14Nm

Functions

Square bezel anti-vandal switch

Order Code

Square bezel anti-vandal switch

Notes:
* Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors
** 3A is only for functions 1NO1NC(SPDT)

Illuminated Options

Square bezel anti vandal switch

Panel Cutout

Square bezel anti-vandal switch 4

Terminal

Square bezel anti-vandal switch

Notes:
C = Common
NO = Normally open
NC = Normally closed
Terminals (-) and (+) used with Illum. option only

Dimension

Square bezel anti-vandal switch

L19S

Square bezel anti-vandal switch

L22S
