V16 Anti vandal switch

V16 Anti vandal switch
V16 Anti vandal switch

The anti vandal switch offer attractive, robust and durable switch, available with different bushing diameters(12 ~25mm), actuator shapes, Protection IP65 / IK09.
This anti-vandal switch features a easy clean, aesthetic look for high end products.
Our anti-vandal switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications.
Also comes in black anodized finish.

  • Variety of Material
  • Long life, high reliability
  • Anti-Vandal IK09/ Sealed IP65

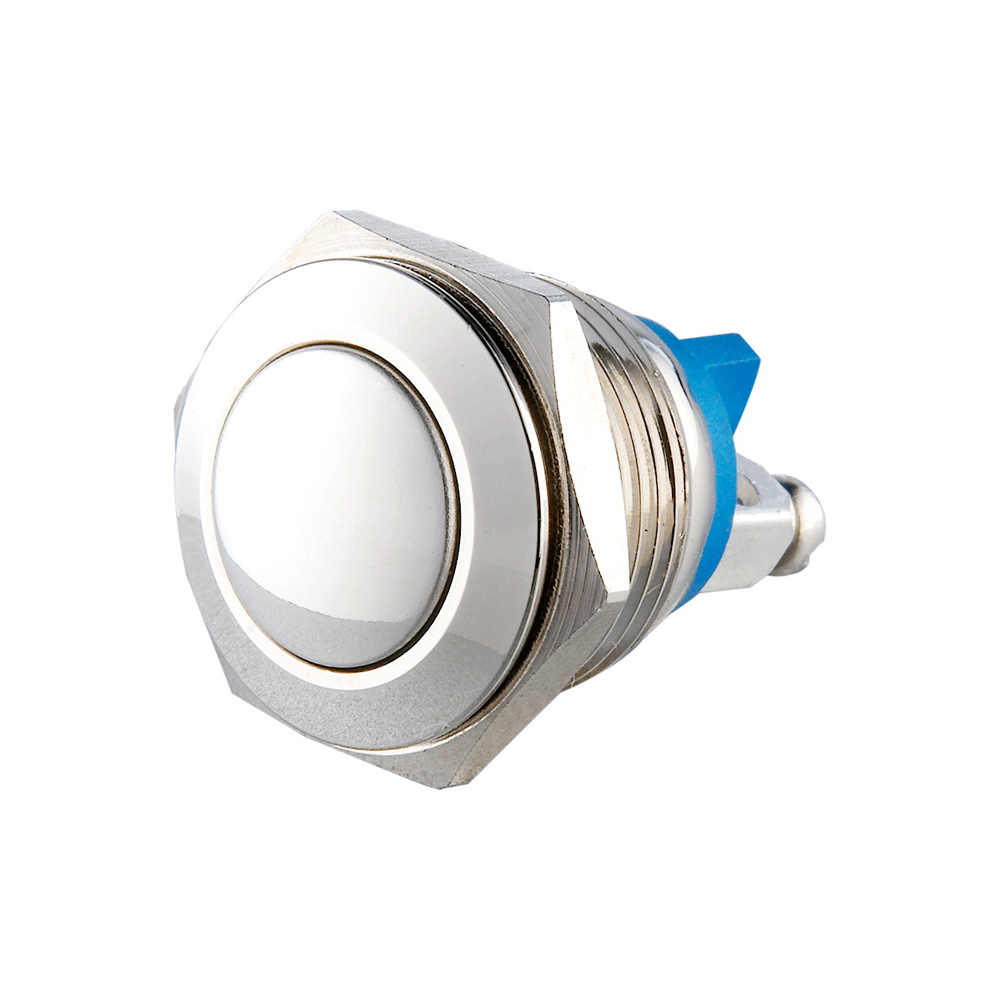

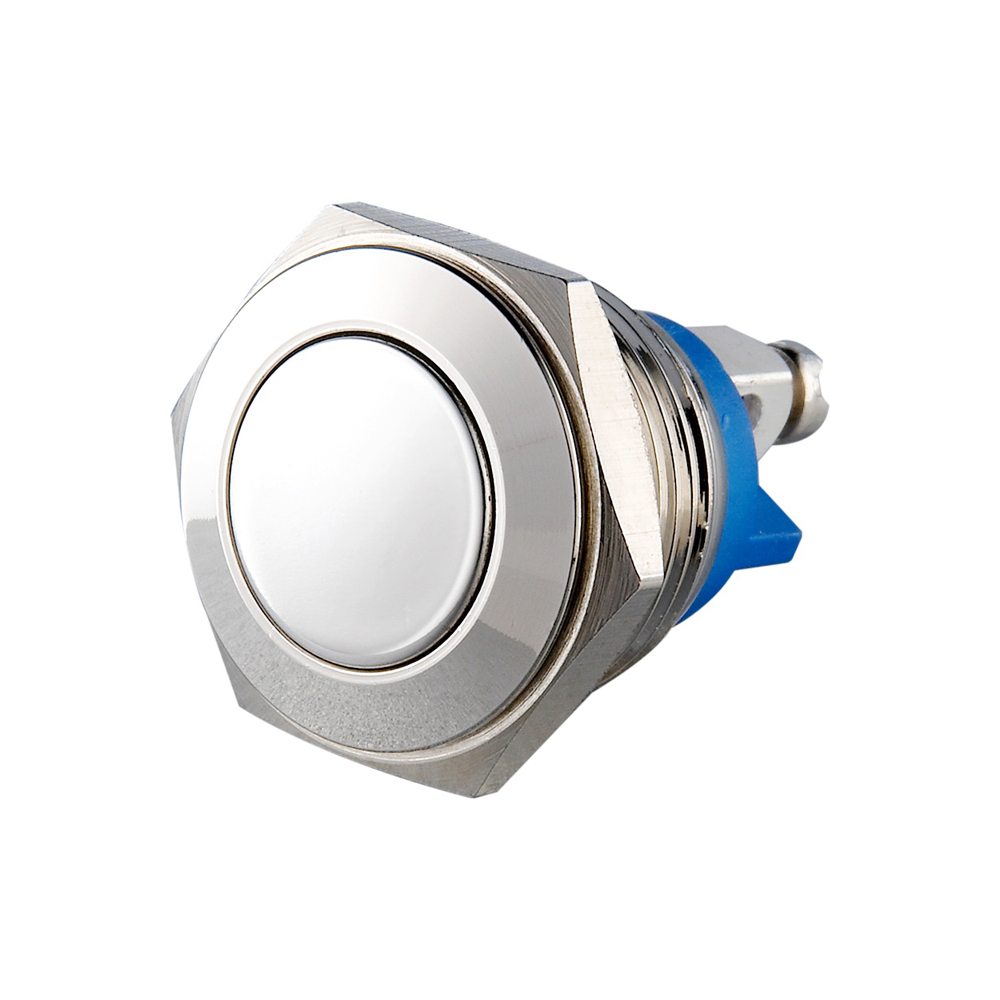

  • Domed/ Flat/ High Flat Actuator

Features

Functions

V16 Anti vandal switch

Order Code

V16 Anti vandal switch

Technical Data

Type V16-F V16-B V16-H
Actuator Options Flat Domed High Flat
Max. Panel Thickness: 0.236″ (6.0mm)
Terminal Screw / Solder lug (2.8 x 0.5)
Max. Switch Rating 2A/ 48VDC
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000mΩ
Dielectric Strengh 2000VAC
Operation Temp. -20°C ~ +55°C
Mechanical Life 1,000,000cycles
Electrical Life >50,000cycles
Contact Material Silver Alloy
Torque 5 ~ 14Nm
Operation Pressure approx. 5.5N
Protection IP65
Material Actuator Stainless Steel/ Nickel plated brass/ *Gold plated Brass/ *Anodized Aluminum
Body Stainless Steel/ Nickel plated brass/ *Gold plated Brass/ *Anodized Aluminum
Base PBT

Descriptions/ Panel cutout

V16 Anti vandal switch

Dimension

V16 Anti vandal switch

Solder terminal

V16 Anti vandal switch

Screw terminal

Applications / Markets:

Car Controls

Industrial Controls

Yacht Controls

Kiosks

Parking Devices

Electrical Housewares

Security Devices

Kitchen

Audio Visual

Medical Equipment

Complementary products:
