Description

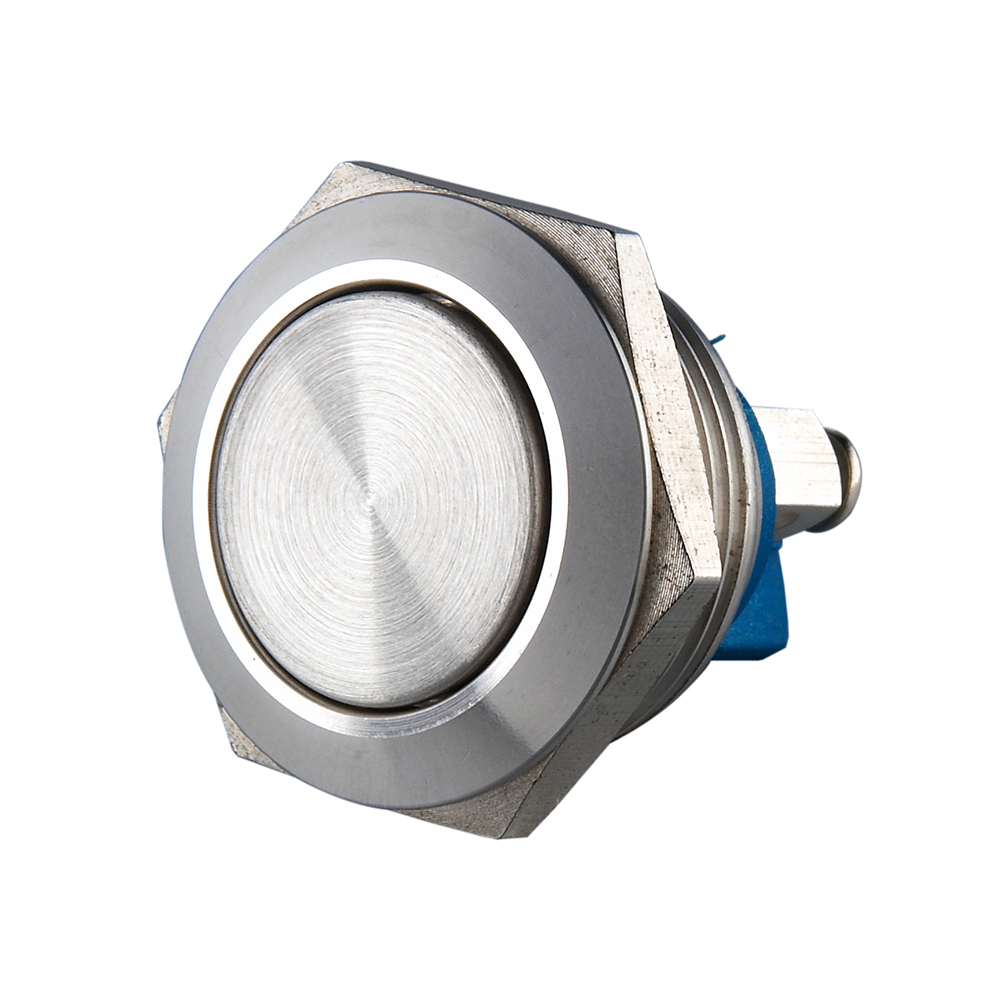

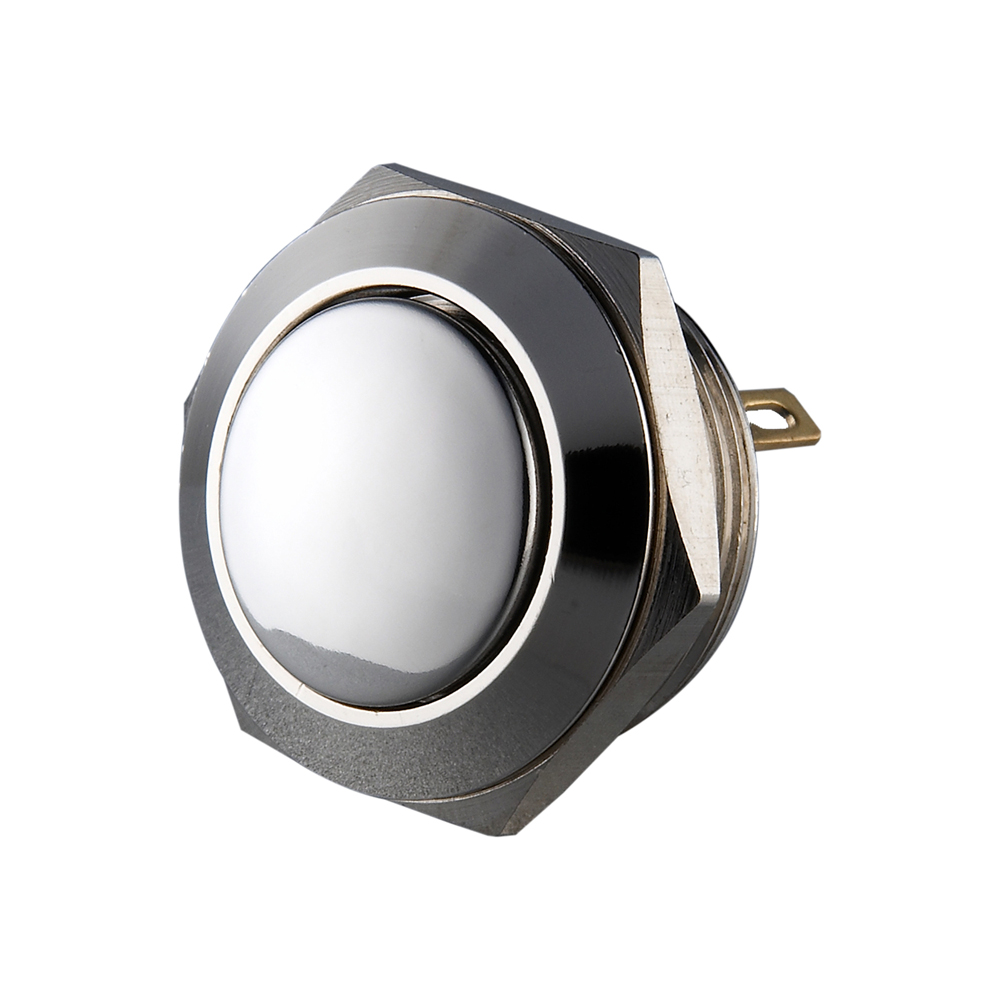

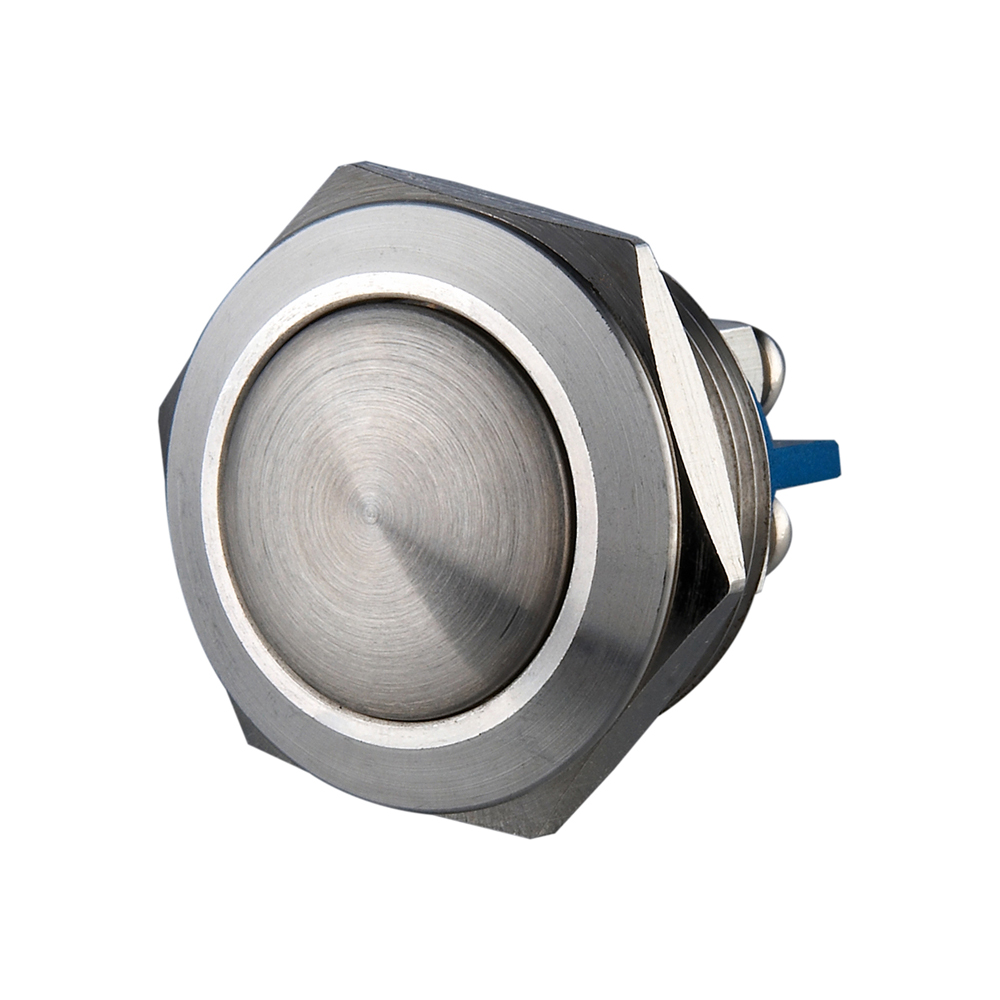

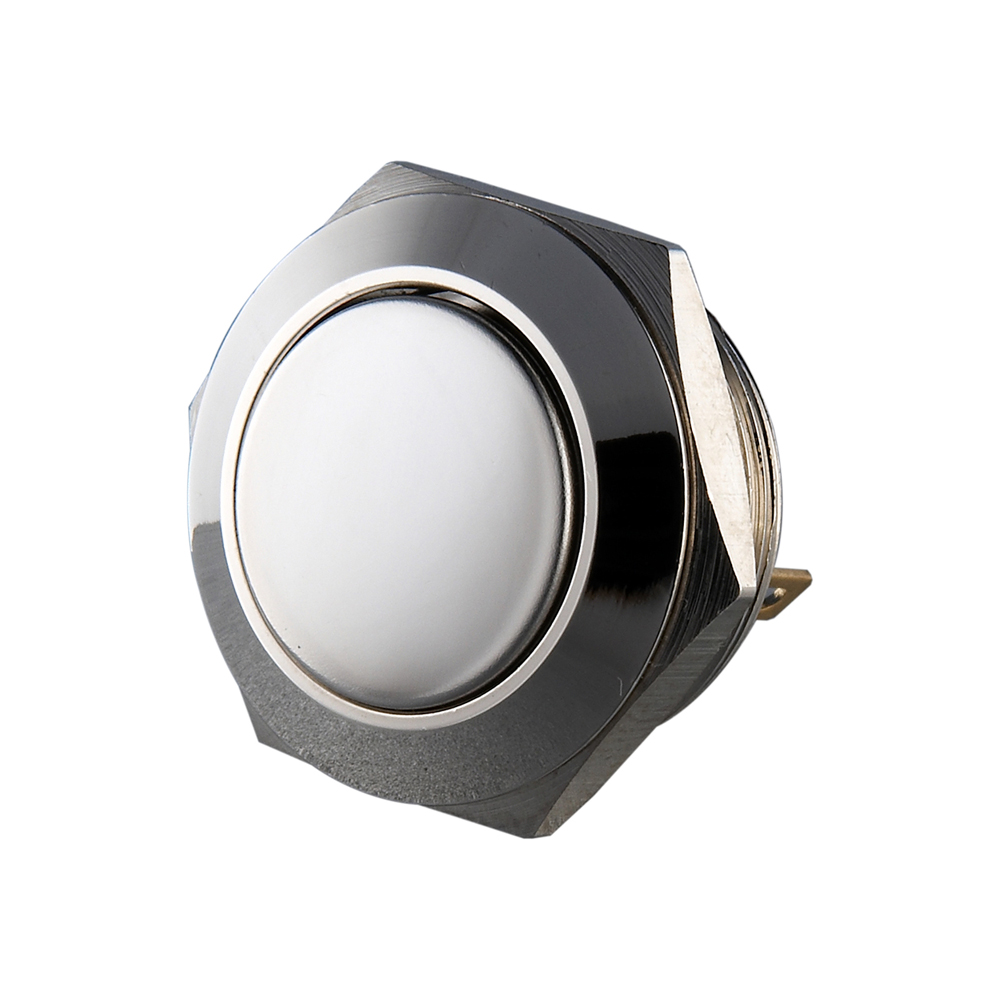

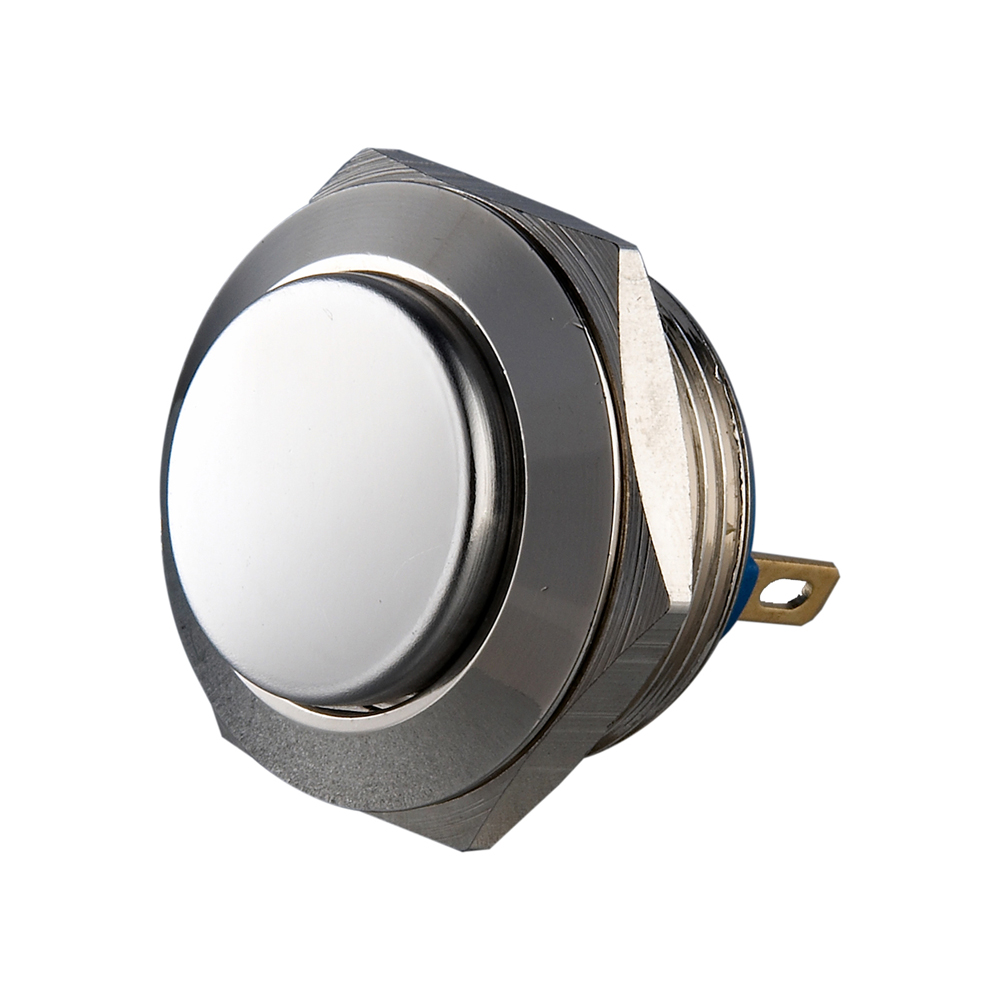

The Vs19 Series short body anti-vandal switch features a long life and custom laser engraved marking options. It’s water resistant, sealed to IP65 ratings for protection against dust and moisture. This sealed IP65 switch features a clean and aesthetic look and is meant for mounting in a panel cutout size of 19mm. It also comes in multiple finishes, including black anodized, gold, nickel, polished stainless, and brushed stainless steel. Get A Quote
Key Features
- IP65 rated protection against dust and moisture
- 19mm diameter panel cutout
- 1 pole, Off-(On) functionality
- Solder and screw terminal options available
Functions
Order Code
Technical Data
| Type | Vs19-F | Vs19-B | Vs19-H | |
| Actuator Options | Flat | Domed | High Flat | |
| Max. Panel Thickness: | 0.394″ (10.0mm) | |||
| Terminal | Screw / Solder lug (2.8 x 0.5) | |||
| Max. Switch Rating | 2A/ 48VDC | |||
| Contact Resistance | ≤50mΩ | |||
| Insulation Resistance | ≥1000mΩ | |||
| Dielectric Strengh | 2000VAC | |||
| Operation Temp. | -20°C ~ 55°C | |||
| Mechanical Life | 1,000,000cycles | |||
| Electrical Life | >50,000cycles | |||
| Contact Material | Silver Alloy | |||
| Torque | 5 ~ 14Nm | |||
| Operation Pressure | 5.5N | |||
| Protection | IP65 | |||
| Material | Actuator | Stainless Steel/ Nickel plated brass | ||
| Body | Stainless Steel/ Nickel plated brass | |||
| Base | PBT | |||
Dimension
FAQ
The Vs19 switch boasts a compact short-body design (max depth 10mm), robust IP65 sealing against dust and water, IK09 vandal resistance, and is suitable for 19mm panel cutouts. It offers multiple actuator styles (flat, domed, high), laser engraving, and finish options such as stainless steel and nickel-plated brass.
With IP65-rated protection and an IK09 impact rating, the Vs19 is resistant to tampering, water, and dust, making it perfect for kiosks, ticketing machines, industrial controls, and outdoor equipment exposed to heavy use or vandalism.
Choose from various actuator shapes (flat, domed, high), illuminated and non-illuminated versions, and terminal types including screw and solder pin configurations, allowing easy adaptation to your wiring and panel requirements.
Yes, the Vs19 supports laser-engraved symbols or text, ideal for custom labeling of functions on control panels or corporate branding needs.
The switch is rated for a mechanical lifespan of up to 1,000,000 cycles and electrical life exceeding 50,000 cycles, ensuring reliable operation in mission-critical or high-frequency use cases.
Common uses include public kiosks, access control panels, ticket dispensers, industrial machines, marine, and transportation systems—anywhere a durable, water-resistant push button is required.
The Vs19 typically supports 2A at 48VDC, offers low contact resistance (≤50mΩ), insulation resistance (≥1000mΩ), and operates within a temperature range of -20°C to +55°C.
Yes, both momentary (returns when released) and latching versions (stays on until pressed again) are available to suit different control schemes.
Designed for standard 19mm panel cutouts, the Vs19 accommodates panel thicknesses up to 10mm and includes secure nut or screw mounting options for vibration resistance.
