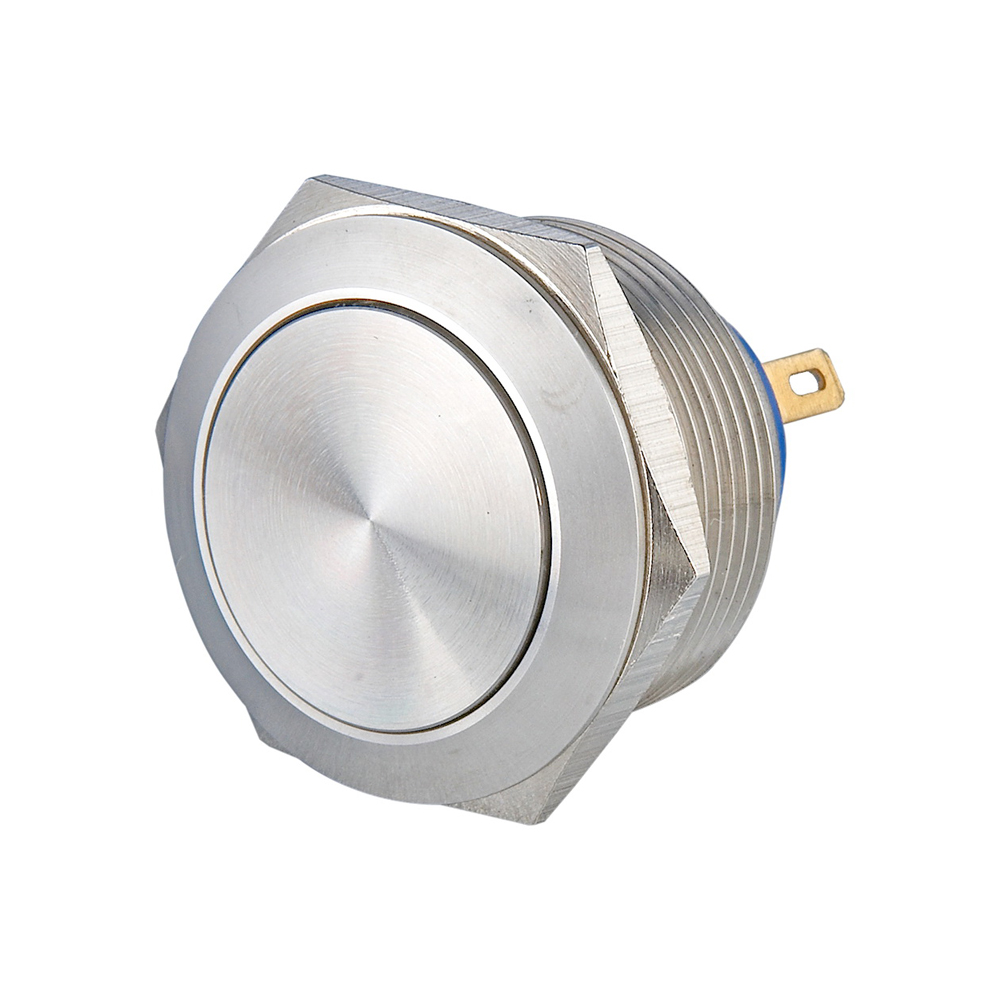

V22 Series Sealed, Momentary Anti-vandal Switch

  • IP65 rated protection against dust and moisture
  • 22mm diameter panel cutout
  • 1 pole, Off-(On) functionality
  • Solder and screw terminal options available

Applications for these anti-vandal switches include:

  • Kiosks and ticket dispensers
  • Audio/visual
  • Medical equipment
  • Security devices
  • Electrical housewares
  • Industrial controls

Functions

V22 Anti vandal switch

Order Code

V22 Anti vandal switch

Actuator Options

V22 Series Long Life Waterproof Momentary Switch anti-vandal

Technical Data

Type V22-F V22-B V22-H
Actuator Options Flat Domed High Flat
Max. Panel Thickness: 0.315″ (8.0mm)
Terminal Screw/ Pin(2.8X0.5)
Max. Switch Rating 2A/ 48VDC
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000mΩ
Dielectric Strengh 2000VAC
Operation Temp. -20°C ~ +55°C
Mechanical Life 1,000,000cycles
Electrical Life >50,000cycles
Contact Material Silver Alloy
Torque 5 ~ 14Nm
Operation Pressure approx. 5.5N
Protection IP65
Material Actuator Stainless Steel
Body Stainless Steel
Base PBT

Descriptions/ Panel Cutout

V22 Anti vandal switch

Dimension

V22 Anti vandal switch

Solder terminal

V22 Anti vandal switch

Screw terminal

FAQs

Q1: What is the key feature of the V22 waterproof momentary switch?

A: The V22 switch is specifically designed as a waterproof momentary switch, providing momentary action while also offering protection against water and dust.



Q2: Can the V22 momentary switch handle continuous usage?

A: The V22 switch is typically designed for intermittent usage, making it ideal for applications that require brief activation.



Q3: Is the V22 waterproof momentary switch suitable for outdoor lighting control?

A: Yes, the V22’s waterproof design makes it a reliable choice for outdoor lighting control, ensuring operation even in wet conditions.



Q4: How do I install the V22 waterproof momentary switch?

A: The installation process for the V22 switch is typically straightforward. Follow Langir’s guidelines for proper installation instructions.



Q5: What is the expected lifespan of the V22 momentary switch?

A: The V22 switch’s durability ensures a reasonably long lifespan, but factors like usage and environmental conditions can impact longevity.



Q6: Is the V22 switch compatible with low-voltage circuits?

A: The V22 waterproof momentary switch may be available in different voltage ratings to suit various applications, including low-voltage circuits.



Q7: Can the V22 switch be used in marine applications?

A: Yes, the V22’s waterproof design makes it suitable for certain marine applications where protection against water and dust is necessary.



Q8: How does the V22 momentary switch compare to a standard non-waterproof momentary switch in terms of durability?

A: The V22’s waterproof design gives it an edge in durability, making it suitable for challenging environments where protection against water is essential.



Q9: What are the common applications for the V22 waterproof momentary switch?

A: The V22 switch is commonly used in various applications where momentary activation with water resistance is required, such as control panels, machinery, and automotive.



Q10: Can the V22 switch be operated with gloves?

A: Depending on the specific design of the V22 switch, it may be possible to operate it with gloves, making it suitable for applications where users wear protective gear.



Q11: Is the V22 waterproof momentary switch suitable for medical equipment?

A: The V22’s waterproof and dustproof design makes it a potential option for certain medical equipment, particularly when cleanliness and reliability are essential.



Q12: Can the V22 waterproof momentary switch be customized for specific applications?

A: Langir may offer customization options for the V22 switch, allowing you to tailor it to your specific needs.

Send your inquiry now

Fill out my online form.

Main products

V12 Series Long Life IP65 Waterproof Push Button Switch

V12 Series Long Life IP65 Waterproof Push Button Switch

These long life IP65 waterproof push button switches have solder lug or screw terminal options, and are 1-pole, momentary switches with an IP65 rating for protection against dust and moisture. They fit in a panel cutout sized 12mm with a maximum depth of 5mm.
  • 12mm diameter panel cutout
  • IP65 rated protection against dust and moisture
  • 1 pole; momentary pushbuttons
  • Actuator color options available
  • Solder and Screw terminal options available
  • V16 Sealed, Anti-vandal switch

    V16 Sealed, Anti-vandal switch

    Vandal resistant and water resistant to IP65, this anti-vandal switch has a long life expectancy, and a panel cutout size of 16mm (6mm max. depth). It offers an Off-(On) configuration and your choice of domed, flat, or high actuator options.
  • 16mm diameter panel cutout
  • Anti-Vandal IK09/ Sealed IP65
  • 1NO or 1NC momentary switch options available
  • Solder and screw terminal options available

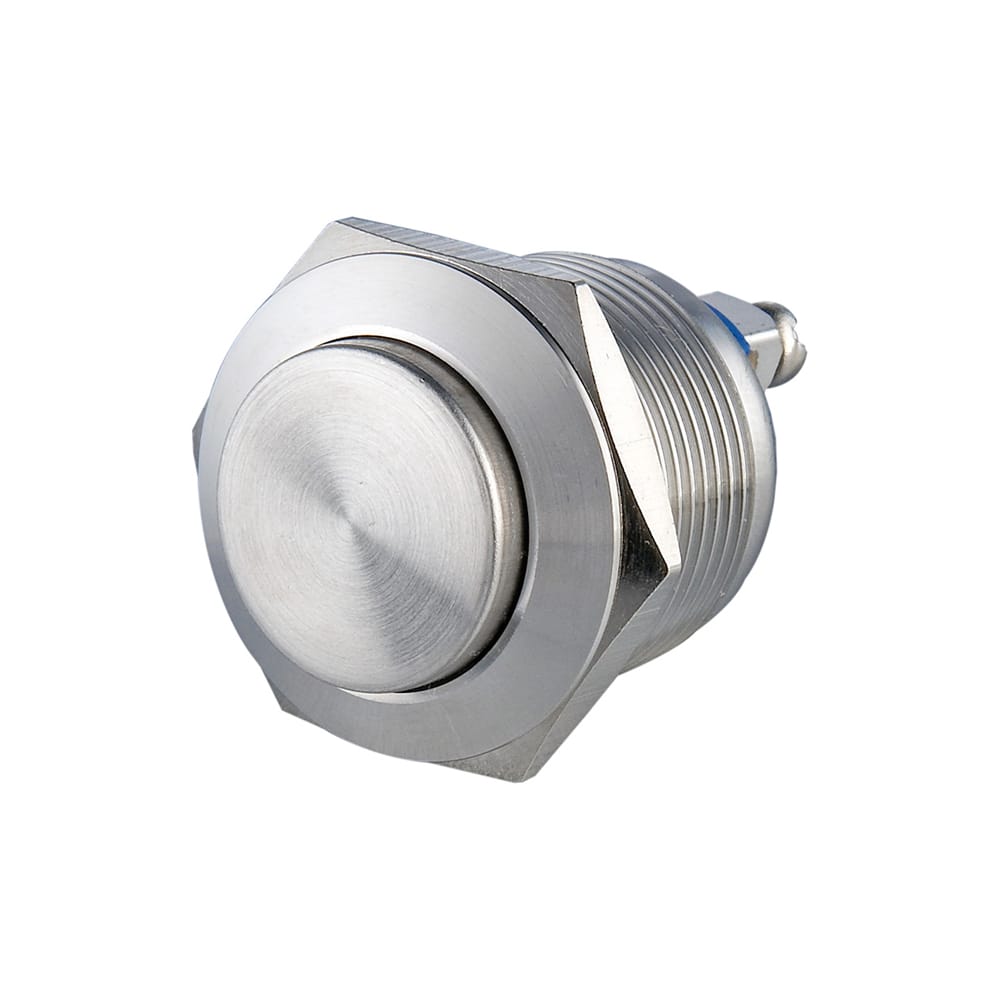

  • V19 Series Long Life, Waterproof Anti-vandal Switch
