L12 Anti-vandal pushbutton switch

  • 12mm diameter panel cutout
  • Variety LED option
  • Dot, ring illumination available
  • Multiple actuator options
  • Pilot indicator option
  • IP65 rated latching push button switch
  • Momentary Off-(On), Latching Off-On

Specifications

  • Electrical Rating: 2A36VDC
  • Mechanical Life: 200,000 Cycles
  • Electrical Life: 50,000 Cycles
  • Contact Resistance: 50mΩ Max.
  • Insulation Resistance: 1000 MΩ Min.
  • Dielectric Strength: 2,000VAC
  • Operating/Storage Temperature: -20°C to 55°C
  • Travel: 1.50mm
  • Moisture Protection: IP65
  • Actuation Force: 4N
  • Panel Thickness: 1-11mm
  • Mounting Nut Torque: 5-14Nm

Part Number Configurator

L12 Anti vandal latching push button switch

NOTES:
* Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors

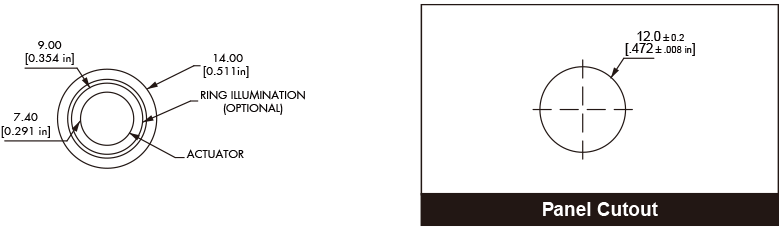

Panel Cutout

L12 Anti vandal switch

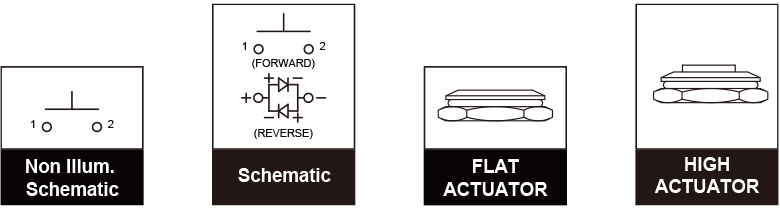

Schematic & Actuator

L12 Anti vandal switch

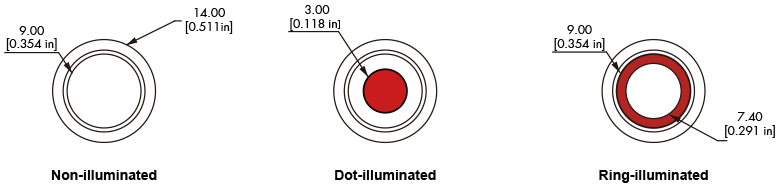

Illumination Options

L12 Anti vandal switch

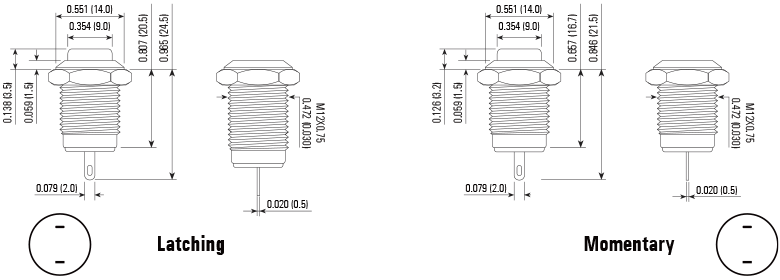

Non-illuminated

L12 Anti vandal switch

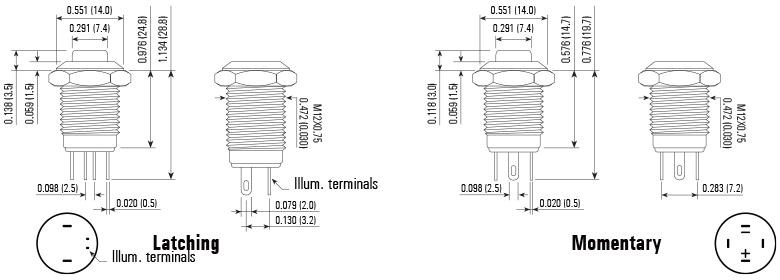

Ring-illuminated

L12 Anti vandal switch

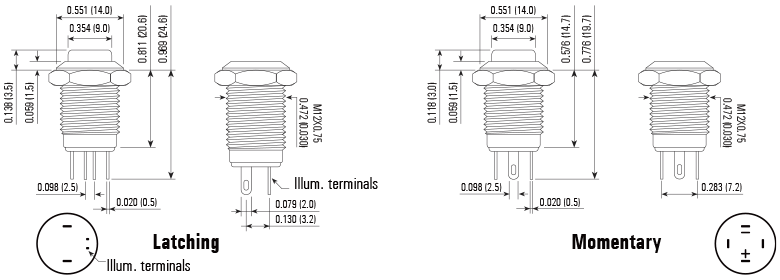

Dot-illuminated

L12 Anti vandal switch

FAQs

Q1: What is a latching push button switch?
A1: A latching push button switch is a type of switch that maintains its state even after the actuating force is released, providing a stable on/off condition without continuous pressure.

Q2: How does a latching push button switch work?
A2: A latching push button switch operates using a mechanical latch or toggle mechanism that holds the contacts in either the open or closed position until manually toggled again.

Q3: What are the advantages of using latching push button switches?
A3: They offer convenience, energy efficiency, and the ability to maintain a specific state without continuous power consumption.

Q4: Where are latching push button switches commonly used?
A4: They are commonly used in applications where maintaining a specific condition is desired, such as control panels, power management systems, and home automation.

Q5: Can they be used for both AC and DC applications?
A5: Yes, they can be designed to handle both AC and DC electrical currents, depending on their specifications and ratings.

Q6: Are they suitable for high-current applications?
A6: Yes, they can be designed to handle high-current applications, providing reliable switching for demanding electrical loads.

Q7: Can they be remotely controlled or integrated with other systems?
A7: Yes, they can be integrated into remote control systems, allowing for remote operation or integration with other electronic devices.

Q8: Are latching push button switches prone to accidental toggling or unintended state changes?
A8: They can include mechanisms such as locking mechanisms or protective covers to prevent accidental toggling and ensure stable operation.

Q9: What is the expected lifespan of a latching push button switch?
A9: The lifespan of a latching push button switch can vary depending on factors such as usage conditions and quality, but they are typically designed for long-lasting performance exceeding millions of cycles.

Q10: How do I select the right latching push button switch for my application?
A10: When selecting a latching push button switch, consider factors such as current and voltage ratings, contact materials, actuation force, mounting options, and environmental conditions to ensure compatibility and optimal performance.

Q11: Can these switches be customized for specific requirements?
A11: Yes, Langir offers customization options for anti-vandal switches, including different sizes, colors, illumination options, actuator styles, and mounting configurations.
