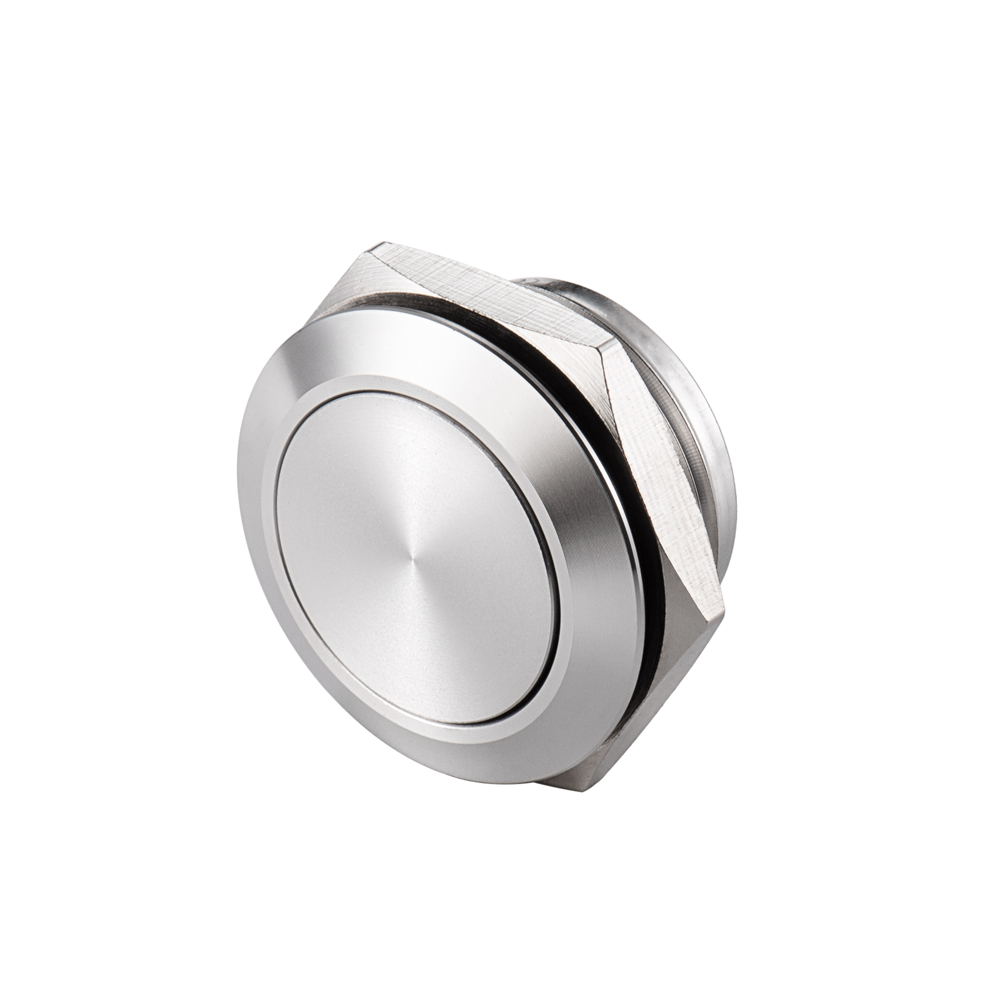

Ultra Short Anti-vandal switch

  • 19, 22 or 25mm diameter panel cutout
  • Ring illumination available
  • IP67 rated
  • Soldered wire leads optional

Specifications

Electrical Rating: 50mA, 24VDC
Mechanical Life: 1,000,000 Cycles
Electrical Life: 50,000 Cycles
Contact Resistance: 50mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Dielectric Strength: 2,000VAC
Operating/Storage Temperature: -20°C to 55°C
Travel: 0.5mm
Moisture Protection: IP67
Actuation Force: 4N
Panel Thickness: 1-3mm
Mounting Nut Torque: 5-14Nm

Order Code

Ultra Short Anti-vandal switch

Notes:
* Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors

Dimension

L19U Ultra Short Anti-vandal switch

L19U Ultra Short Anti-vandal switch

L22U Ultra Short Anti-vandal switch

L22U Ultra Short Anti-vandal switch

L25U Ultra Short Anti-vandal switch

L25U Ultra Short Anti-vandal switch
