- Backlit option
- RGB LED illumination option
- Long life, high reliability
- IP65 rated for dust and moisture protection
- Multiple function options

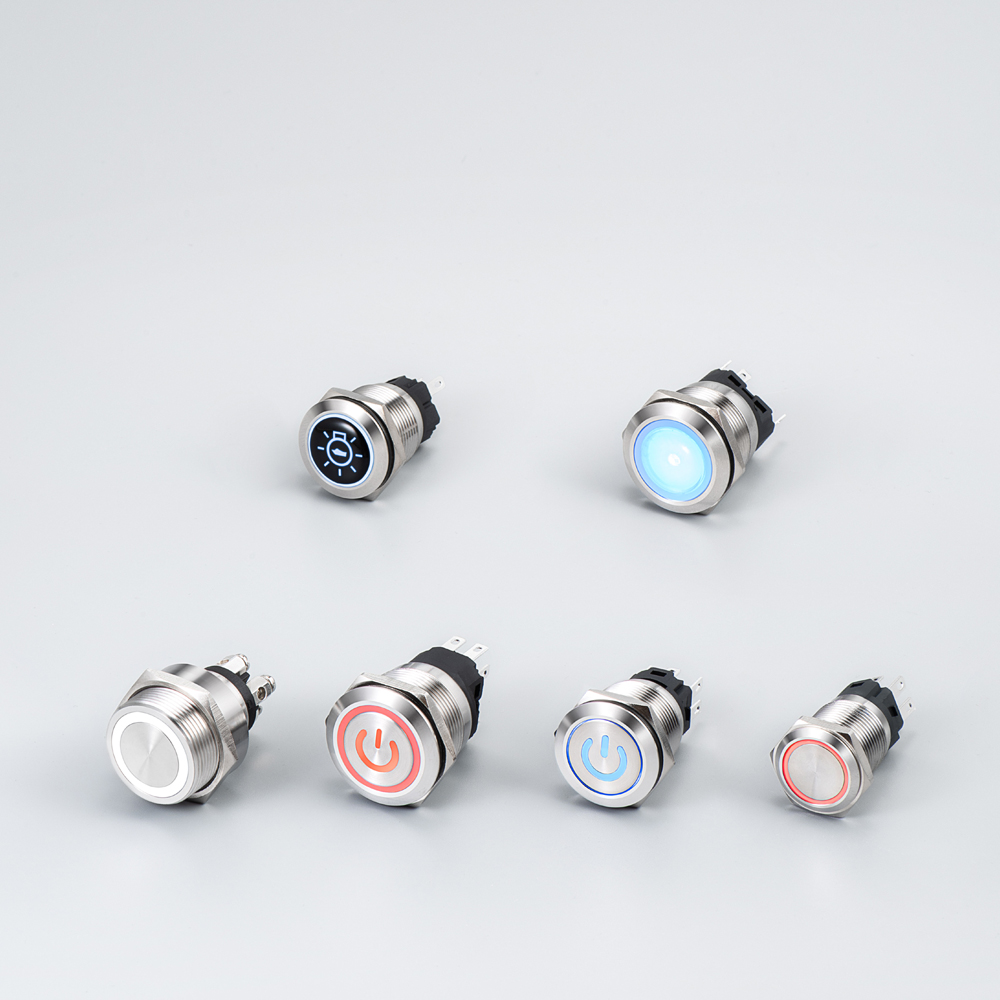

- Dot, ring or symbol illumination available
L22T Anti-vandal Double Pole Switch
L22T anti-vandal double pole switch is suitable for harsh conditions and can withstand possible malicious damage. With transient action triggering, it is ideal for access control and access control applications such as elevators, emergency buttons, parking management systems, emergency phones, vending machines and food handling.
L22T anti-vandal double pole switch has rugged design combines with a variety of styles, ehances its design and manufacturing integration services, provides a high flexibility.Also, it has high quality solution for our numerous industry users, so as to meet their design requirements for control panel.
Functions

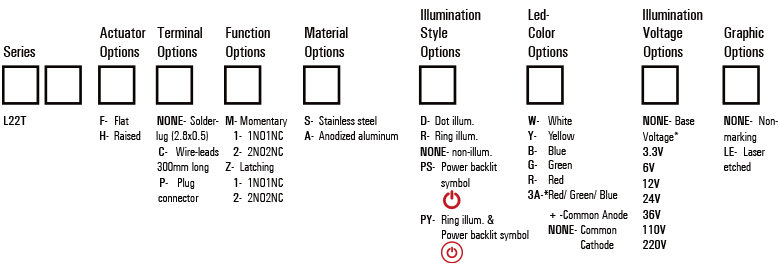

Order Code
- * Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors
Technical Data
| Type | L22T | ||||||
| Illuminated Options | Non-Illuminated/ Ring Illuminated/ Dot Illuminated/ Backlit | ||||||
| Max. Panel Thickness: | Max. 0.394″ (10.0mm) | ||||||
| Kind: | Double-pole on-off Switch | ||||||
| Certification: | ISO9001, CE, ISO14001 | ||||||
| Transport Package: | Carton | ||||||
| Usage: | Control Button, Control Switch | ||||||
| Terminal | Solder lug (1.8X0.4) | ||||||
| Max. Switch Rating | Ith: 3A Ui: 250VAC | ||||||
| Contact Resistance | ≤50mΩ | ||||||
| Insulation Resistance | ≥1000mΩ | ||||||
| Dielectric Strengh | 2000VAC | ||||||
| Operation Temp. | -20°C ~ +55°C | ||||||
| Mechanical Life | 500,000cycles(max) | ||||||
| Electrical Life | 30,000cycles(min) | ||||||
| Contact Material | Silver Alloy | ||||||
| Torque | 5~14Nm | ||||||
| Operation Pressure | approx. 3~5N | ||||||
| Protection | IP65/ IK09 | ||||||
| Material | Switch Assembly | UL94V-0 rated Polyamide (Nylon) | |||||
| Tags | Copper Alloy | ||||||
| Terminals | Copper Alloy | ||||||
| Switch Body & Actuator | Stainless Steel/ Anodized Aluminum | ||||||
| Lens and Lens Body | Polycarbonate | ||||||
| Internal Seal | Silicone | ||||||
| O Ring | Nitrile | ||||||
| Color | Type | LED (ratings @ 20mA) | |||||
| Color |  |
 |
 |
 |
 |
 |
|
| Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 | |
| Forward Volatge | 1.8~2.6 | 2.8~3.6 | |||||
| Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. | ||||||
| 3.3V/ 6V/ 12V/ 24V/ 36V/ 110V/ 220V | |||||||
| Life | Approx. 40, 000hours | ||||||
Terminals
- C = Common
- NO = Normally open
- NC = Normally closed
- Terminals (-) and (+) used with Illum. option only
Actuator Options
Illuminated Options

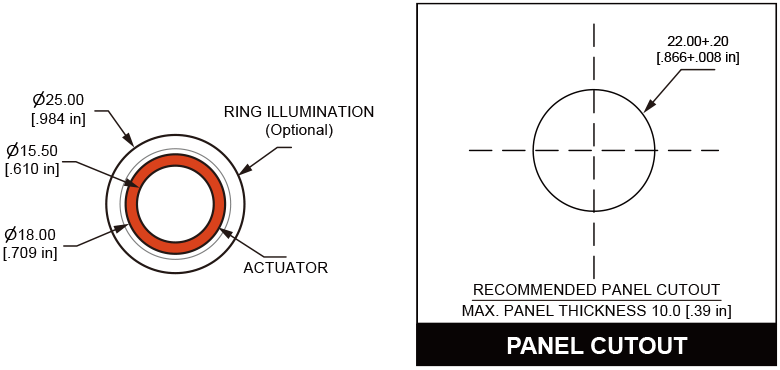

Panel Cutout

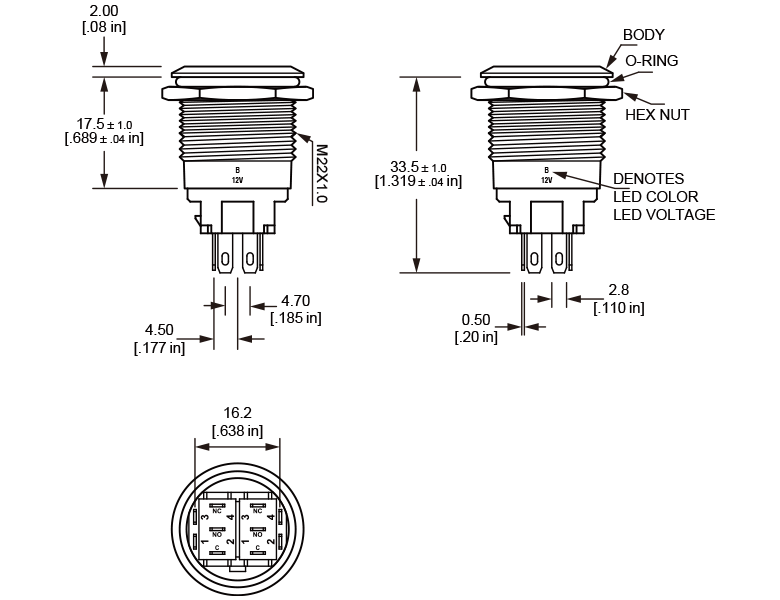

Dimension
FAQs
What is a double pole switch, and what are its advantages over a single pole switch?
A double pole switch is a type of switch that controls two separate circuits. It offers enhanced safety and isolation compared to a single pole switch, making it suitable for applications requiring independent control of multiple loads.
How does the L22T double pole switch incorporate an anti-vandal push button design?
It features a robust and tamper-resistant push button design that resists unauthorized or accidental activation, ensuring reliable operation in public or high-security environments.
What is the IP65 rating of the L22T Anti-Vandal Switch, and what level of protection does it offer?
It has an IP65 rating, indicating its high level of protection against dust and water ingress. It is dust-tight and protected against low-pressure water jets, making it suitable for challenging environments.
Does the L22T double pole switch feature an LED indicator for visual feedback?
Yes, it incorporates an LED indicator that provides clear visual feedback, allowing users to easily identify the switch’s status or activation.
Can the L22T double pole switch handle both AC and DC electrical circuits?
Yes, it’s designed to handle both AC and DC electrical circuits, providing versatility for a wide range of applications.
What materials are used in the construction of the L22T Anti-Vandal Switch to ensure durability and reliability?
It constructed using high-quality materials such as stainless steel and robust engineering plastics, ensuring durability, resistance to corrosion, and long-lasting performance.
Does the L22T double pole switch undergo testing to ensure its compliance with industry standards and certifications?
Yes, it undergoes rigorous testing procedures to ensure its compliance with industry standards and certifications, guaranteeing its quality, reliability, and safety.
What are the key features that contribute to the anti-vandal properties of the L22T switch?
The key features of the L22T double pole switch that contribute to its anti-vandal properties include its robust construction, tamper-resistant design, flush mount style, and durable actuator materials.
Can the L22T switch withstand harsh environmental conditions and extreme temperatures?
Yes, the L22T anti-vandal double pole switch is designed to withstand harsh environmental conditions and extreme temperatures, making it suitable for both indoor and outdoor applications.
What are the typical applications where the L22T anti-vandal switch is commonly used?
It’s commonly used in various applications, including control panels, public access systems, security devices, industrial machinery, and outdoor equipment, where durability, reliability, and security are essential.
Send your inquiry now
Fill out my online form.
Main products
L16 Series Anti-vandal 16mm Push Button Switch
These anti-vandal switches have dot and ring illumination options, 1- or 2-pole circuits performing momentary functions, and are available with either IP40 (non-water resistant) or IP67 (water resistant) ingress protection ratings. They fit in a panel cutout sized 16mm, with a maximum depth of 8mm.
16mm diameter panel cutout
IP65 rated protection against dust and moisture
Dot and ring illumination options available with RGB multicolor LED indicator light
1NO1NC or 2NO2NC and Momentary or Alternated options available
L12 Anti Vandal Switch
L19B High current anti vandal switch
L22O Rear Mounting Anti Vandal Switch
L22O Rear mounting anti vandal switch provides a unique aesthetic feature for 22mm rear mounting. The panel hole size is thread M22X1.0, and the Protection for IP65/ IK09. It offers a variety of options, such as ring illum., stainless steel housing material and LED color options.
M22X1.0 diameter panel cutout
1 pole momentary switch
IP65 rating
Multiple LED color options
Dot and ring illumination options available
Solder terminals and screw terminals options available
L16T Anti Vandal Switch

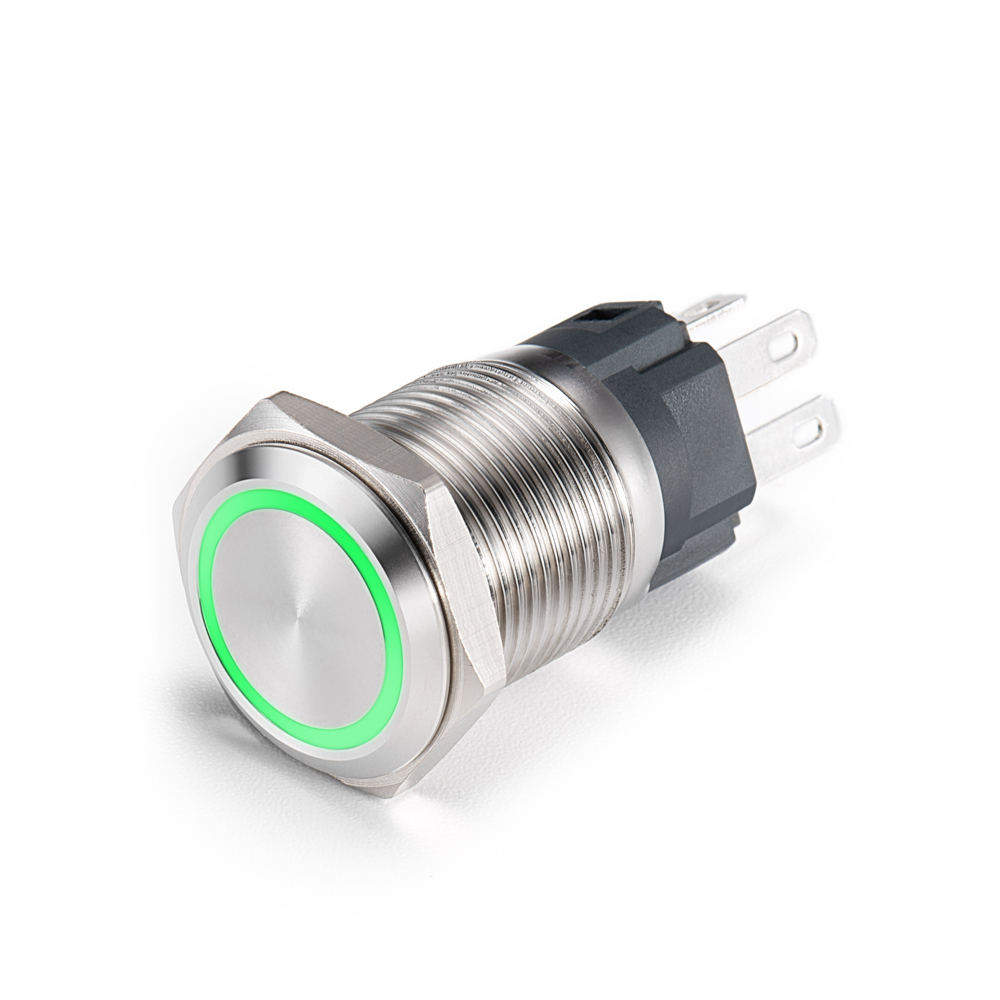

The panel cut-out size is 16mm diameter and it provides IP65 rating for dust and moisture protection. It offers multiple options such as ring illumination, stainless steel housing material, and many LED color options which also includes an RGB LED and Backlit option.
Backlit available
16mm diameter panel cutout

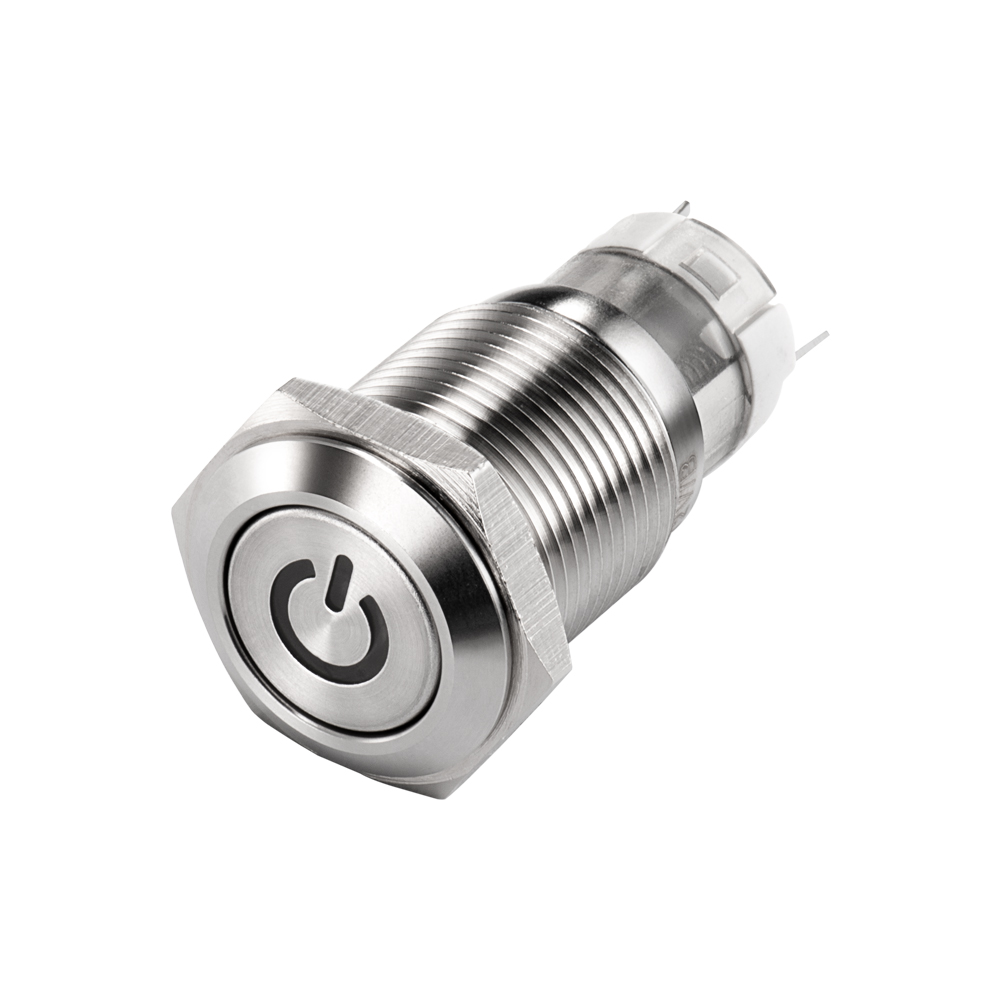

Dot, ring or symbol illumination available
Multiple switch functions available
IP65 rated for dust and moisture protection
RGB LED illumination option
L19T Anti Vandal Waterproof Switch
The panel cut-out size is 19mm diameter and it provides IP65 rating for dust and moisture protection. It offers multiple options such as Ring illumination, Stainless steel material, and many LED color options which also includes an RGB LED and Backlit option.
19mm diameter panel cutout
Dot, ring illumination and Backlit options available
Multiple switch functions available
IP65 rated for dust and moisture protection
RGB LED illumination option
Emergency Stop Switch

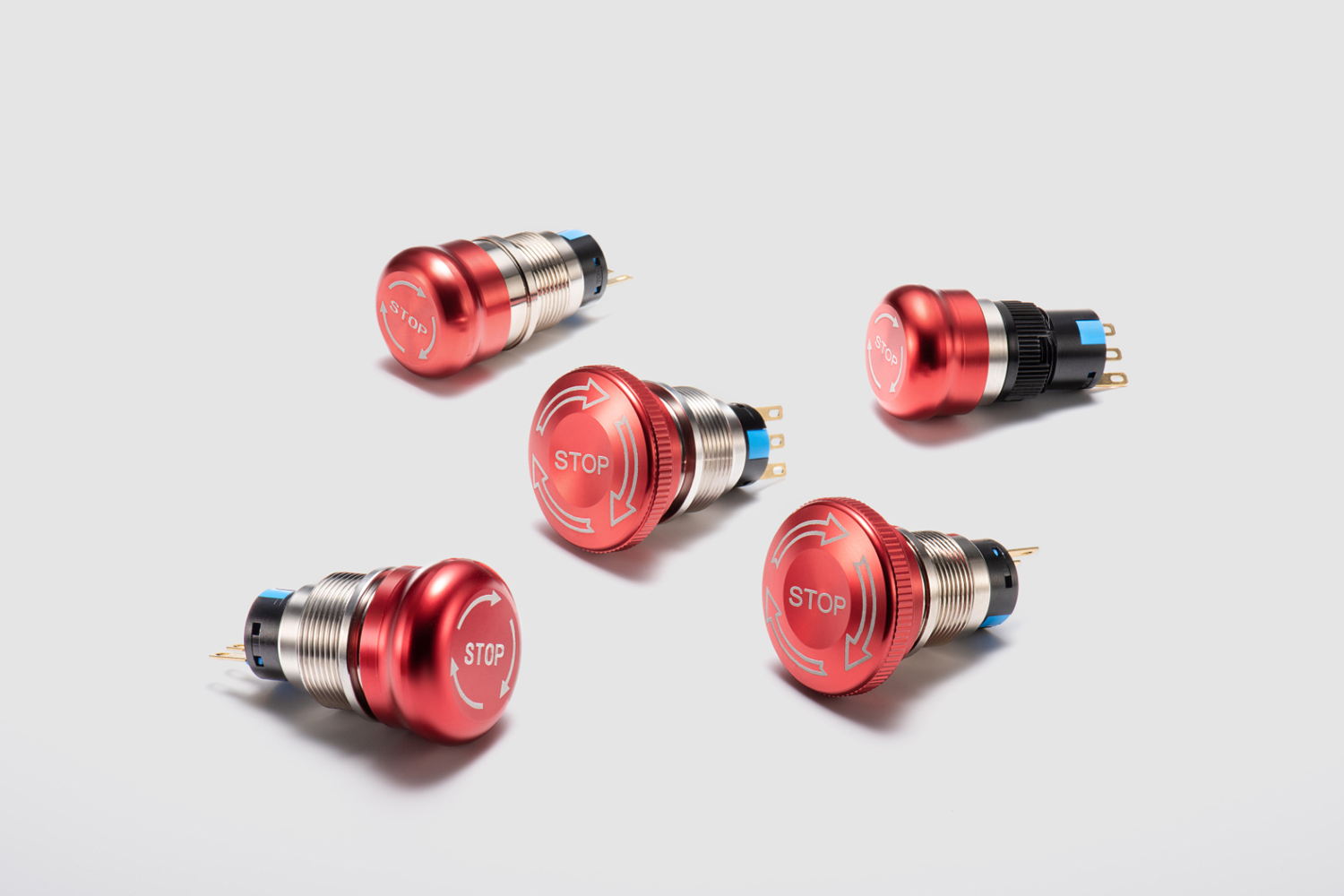

The Turn to Release Emergency Stop Switch provides you with a way to stop your ctuator instantly in case of emergency. All you do is press the button down and it will lock in the Off position, stopping the movement of your actuator. To put it back in the On position, just turn the switch clockwise to release it. Please be aware you may require a relay for actuator control.
